Toyota >> Liteace >> KM36R >> 1.5 Litre 4 Cyl 5K-J OHV 8v >> 09/1985 - 03/1992 2 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Liteace KM36R Wagon [09/1985 to 03/1992] (1.5L 5K-J 4 Cyl OHV CARB)

Part
Nason logo

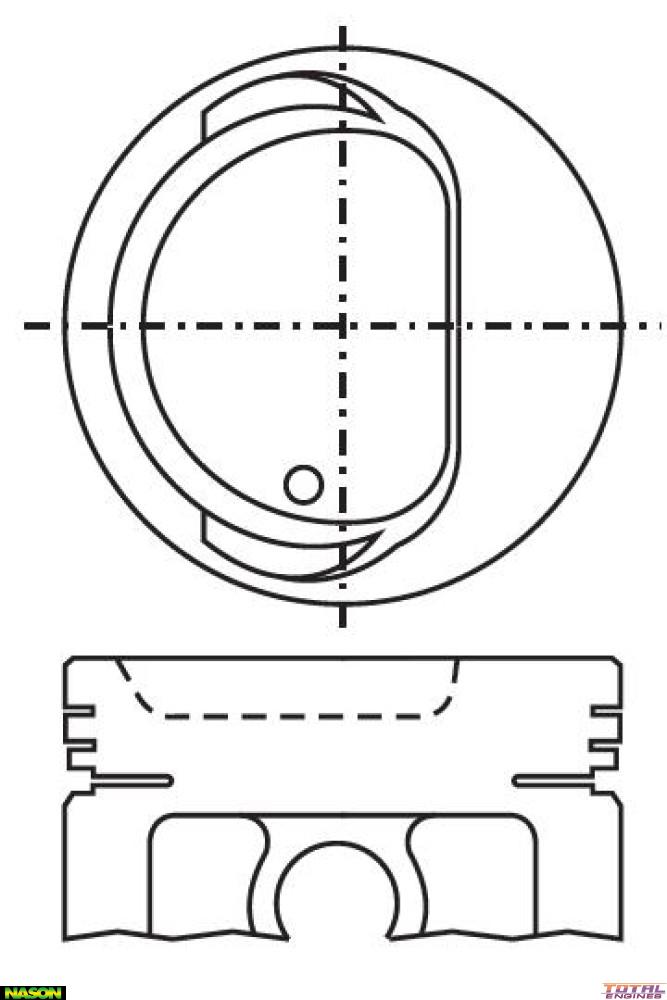

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 68.90mm
Comp Height: 36.00mm - 8.30mm
Pin Size: 18.00mm x 61.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 5300
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Toyota Corolla KE74V (1.5 Litre 4 Cyl 5K-J OHV 8v):
  • RWD Wagon 4 Door [08/1983 to 07/1987] 58KW With Auto or Manual Transmission
Toyota Liteace KM36R (1.5 Litre 4 Cyl 5K-J OHV 8v):
  • RWD Wagon 2 Door [09/1985 to 03/1992] 49KW With Manual Transmission
  • RWD Van 3 Door [09/1985 to 03/1992] 49KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
