Nason Piston & pin set Fits Toyota Liteace YM40R Wagon [10/1985 to 01/1992] (2.0L 3Y-U 4 Cyl OHV CARB)

Name: Nason Piston & pin set Fits Toyota Liteace YM40R Wagon [10/1985 to 01/1992] (2.0L 3Y-U 4 Cyl OHV CARB)
Brand: Nason
SKU: TE1319450
Price: 209.14 AUD
Availability: InStock

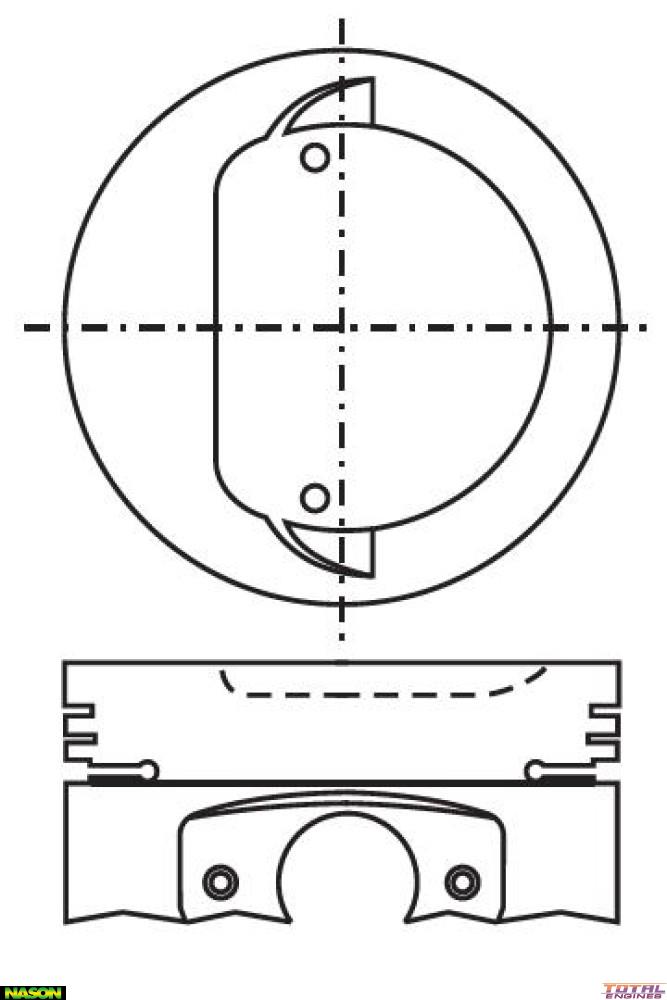

Nason Piston & pin set

Fitment Information:

Nason, 1.00mm Oversize

$209.14

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	86.00mm
Size:	1.00mm / .040"
Head Type:	Dish Top 2 Valve Reliefs
Piston Type:	Cast
Length:	70.00mm
Comp Height:	35.00mm - 5.00mm
Pin Size:	22.00mm x 66.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M4219 or 4219
Size:	1.00mm Oversize

This part will fit the following Vehicles:

Toyota Hiace YH57R (2.0 Litre 4 Cyl 3Y-U OHV 8v):

4WD Van 3 Door [08/1987 to 08/1989] With Manual Transmission

Toyota Liteace YM40R (2.0 Litre 4 Cyl 3Y-U OHV 8v):

4WD Wagon 3 Door [10/1985 to 01/1992] 65KW With Auto or Manual Transmission
