Toyota >> Mark X >> GGA10R >> 3.5 Litre V6 2GR-FE DOHC 24v >> ZIO GGA10 09/2007 - 10/2013 4 Door Wagon >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Mark X GGA10R ZIO GGA10 Wagon [09/2007 to 10/2013] (3.5L 2GR-FE V6 DOHC VVT MPFI)

Part
Nason logo

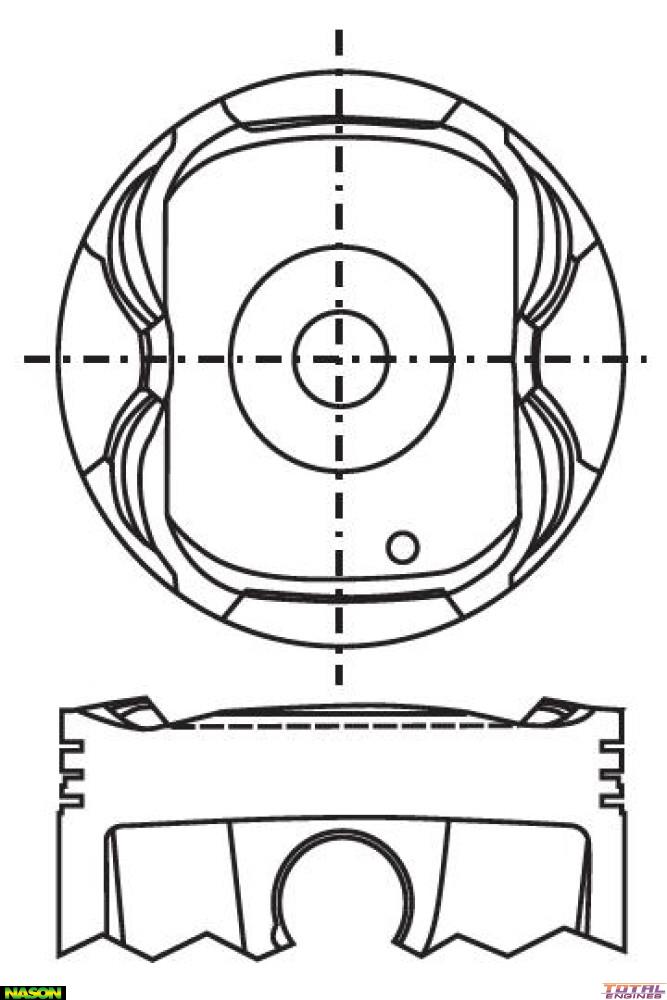

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 94.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 50.50mm
Comp Height: 31.50mm + 4.50mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C4511
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Toyota Mark X GGA10R (3.5 Litre V6 2GR-FE DOHC 24v):
  • ZIO GGA10 FWD Wagon 4 Door [09/2007 to 10/2013] 208KW With Auto Transmission

Description

Nason, 1.00mm Oversize
