Toyota >> Masterace >> YR20R >> 1.8 Litre 4 Cyl 2Y-U OHV 8v >> 11/1982 - 01/1992 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Masterace YR20R Van [11/1982 to 01/1992] (1.8L 2Y-U 4 Cyl OHV CARB)

Part
Nason logo

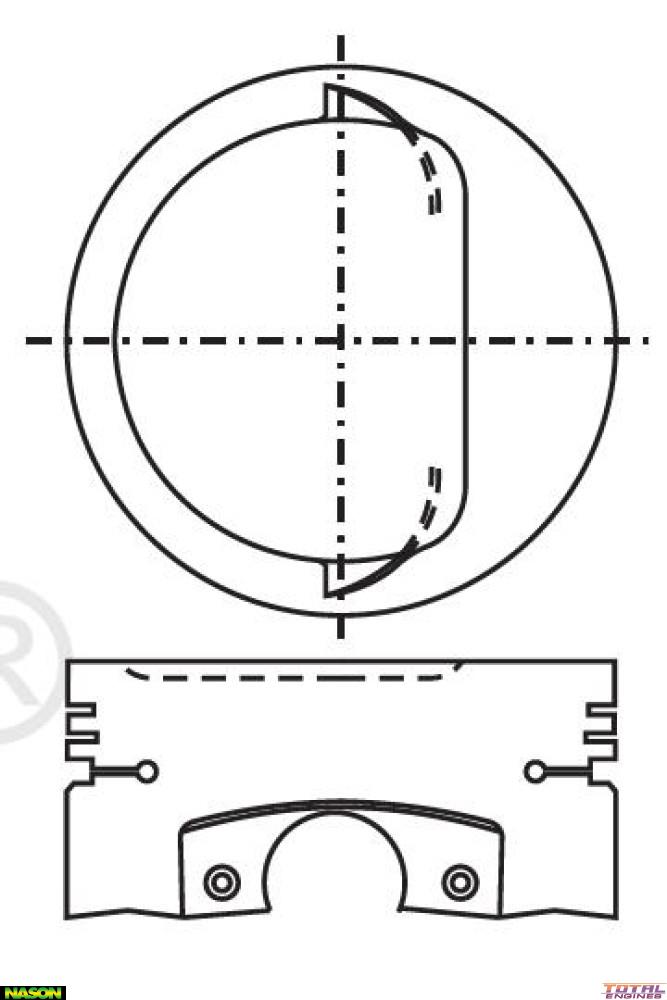

Nason Piston & pin set

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2M4219 or 4219
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 66.00mm
Comp Height: 35.00mm - 2.30mm
Length: 70.00mm
Piston Type: Cast
Head Type: Dish Top 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 86.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Liteace YM21R (1.8 Litre 4 Cyl 2Y-U OHV 8v):
  • RWD Van 3 Door [10/1982 to 08/1985] With Auto or Manual Transmission
Toyota Masterace YR20R (1.8 Litre 4 Cyl 2Y-U OHV 8v):
  • RWD Van 3 Door [11/1982 to 01/1992] 58KW With Auto or Manual Transmission
Toyota Townace YR20R (1.8 Litre 4 Cyl 2Y-U OHV 8v):
  • RWD Van 3 Door [11/1982 to 01/1992] 59KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
