Toyota >> Masterace >> YR21R >> 2.0 Litre 4 Cyl 3Y-E OHV 8v >> YR21 05/1983 - 01/1992 3 Door Passenger Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Masterace YR21R YR21 Passenger Van [05/1983 to 01/1992] (2.0L 3Y-E 4 Cyl OHV EFI)

Part
Nason logo

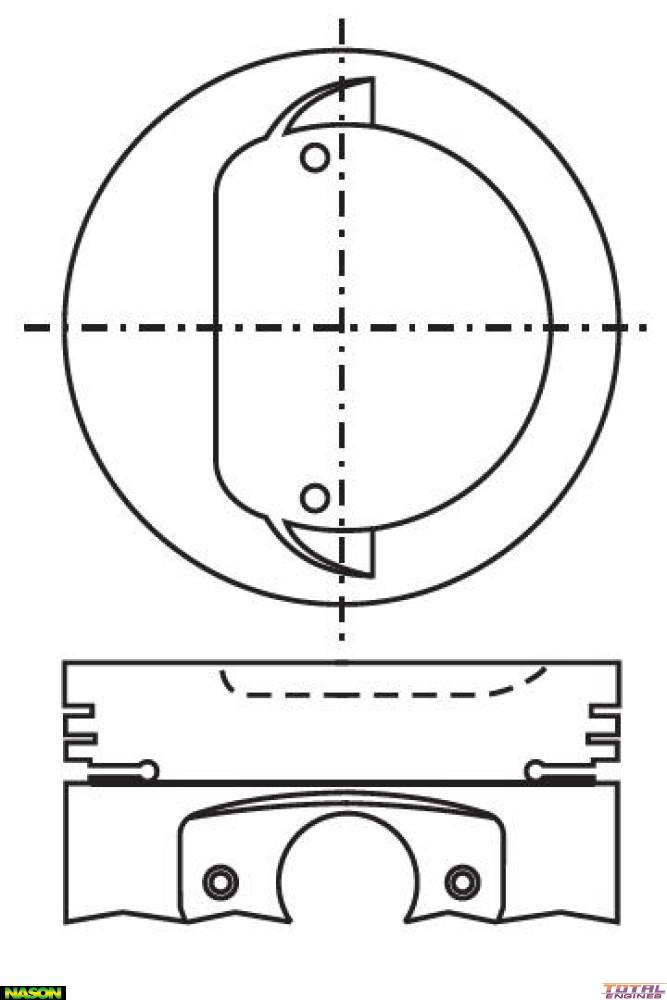

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Dish Top 2 Valve Reliefs
Piston Type: Cast
Length: 70.00mm
Comp Height: 35.00mm - 5.00mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4219 or 4219
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Toyota Masterace YR21R (2.0 Litre 4 Cyl 3Y-E OHV 8v):
  • YR21 RWD Passenger Van 3 Door [05/1983 to 01/1992] 72KW With Auto or Manual Transmission
Toyota Masterace YR30R (2.0 Litre 4 Cyl 3Y-E OHV 8v):
  • YR30 4WD Passenger Van 3 Door [10/1985 to 12/1991] 72KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
