Toyota >> Porte >> NNP11R >> 1.5 Litre 4 Cyl 1NZ-FE DOHC 16v >> 150R 07/2004 - 06/2007 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Porte NNP11R 150R Hatchback [07/2004 to 11/2005] (1.5L 1NZ-FE 4 Cyl DOHC VVT MPFI)

Part
Nason logo

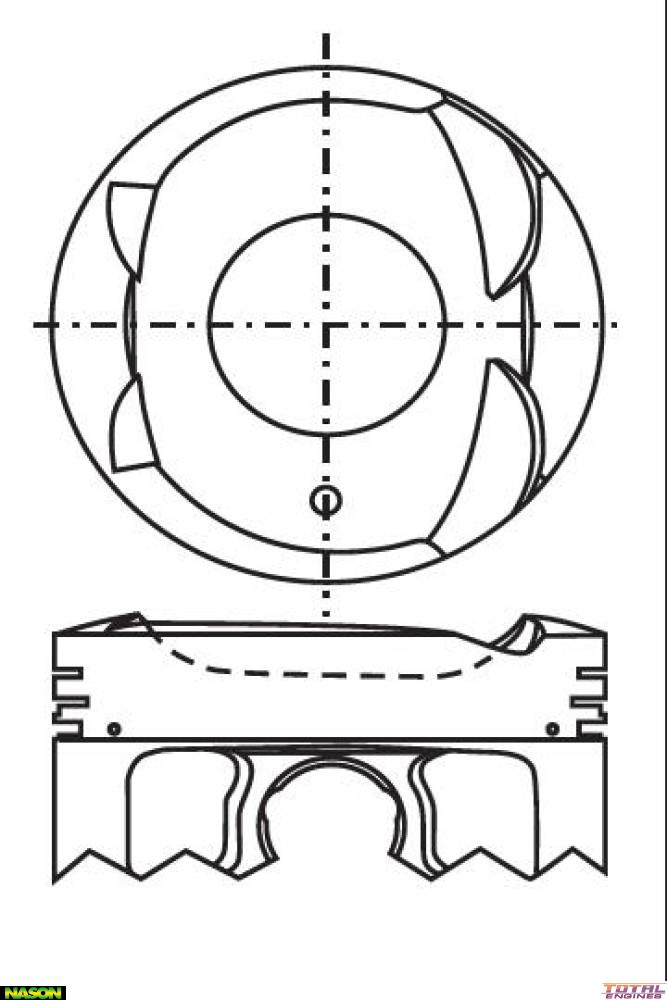

Nason Piston & pin set

Fitment Information:

Nason, STD Size --> 11/2005

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: Std
Head Type: Dish Top with 4 Valve Relief
Piston Type: Cast
Length: 49.80mm
Comp Height: 30.70mm - 6.20mm
Pin Size: 18.00mm x 53.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5901

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Porte NNP11R (1.5 Litre 4 Cyl 1NZ-FE DOHC 16v):
  • 150R FWD Hatchback 4 Door [12/2005 to 06/2007] With Auto Transmission

Tick This part will fit the following Vehicles:

Toyota Porte NNP10R (1.3 Litre 4 Cyl 2NZ-FE DOHC 16v):
  • 130I FWD Hatchback 4 Door [07/2004 to 06/2012] 65KW With Auto Transmission
Toyota Porte NNP11R (1.5 Litre 4 Cyl 1NZ-FE DOHC 16v):
  • 150R FWD Hatchback 4 Door [07/2004 to 11/2005] With Auto Transmission

Description

Nason, STD Size
