Toyota >> Sprinter >> AE85 >> 1.5 Litre 4 Cyl 3A SOHC 8v >> 05/1983 - 04/1987 2 Door Coupe >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Sprinter AE85 Coupe [05/1983 to 04/1987] (1.5L 3A 4 Cyl SOHC CARB)

Part
Nason logo

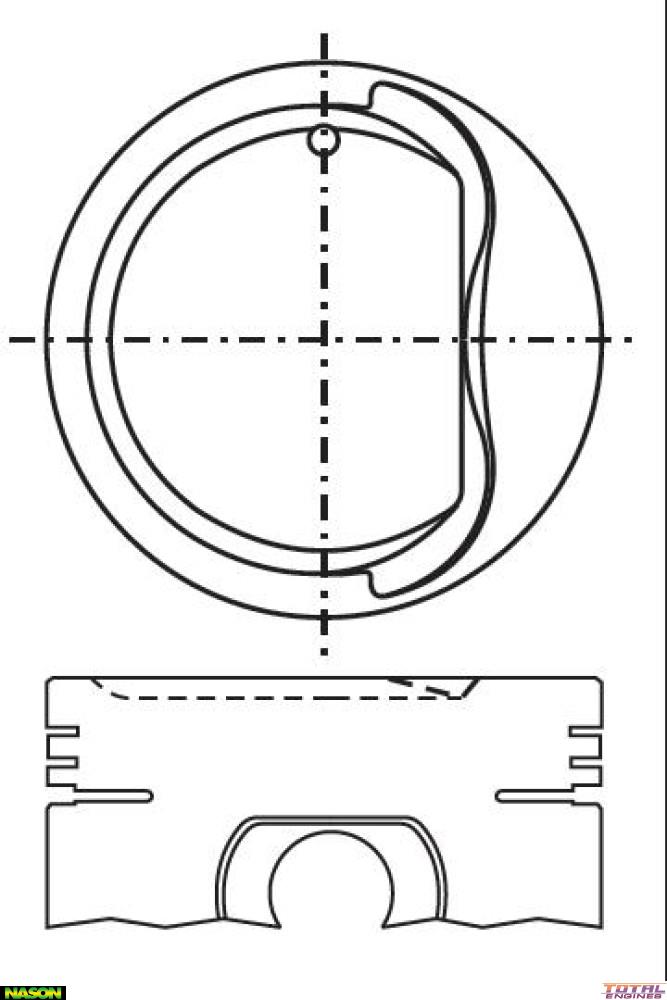

Nason Piston & pin set

Out Of Stock

Specifications
Size: 0.75mm Oversize
Ring Set: 2C6140 or 6140
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 65.00mm
Comp Height: 31.00mm - 2.80mm
Length: 61.00mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Relief
Size: 0.75mm / .030"
Std Bore Size: 77.50mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Sprinter AE85 (1.5 Litre 4 Cyl 3A SOHC 8v):
  • RWD Coupe 2 Door [05/1983 to 04/1987] With Auto Transmission
Toyota Tercel AL25R (1.5 Litre 4 Cyl 3A SOHC 8v):
  • 4WD Wagon 4 Door [08/1984 to 10/1989] With Auto or Manual Transmission

Description

Nason, 0.75mm Oversize
