Toyota >> Tarago >> ACR50R >> 2.4 Litre 4 Cyl 2AZ-FE DOHC 16v >> 03/2006 - 09/2019 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Tarago ACR50R Wagon [03/2006 to 09/2019] (2.4L 2AZ-FE 4 Cyl DOHC VVT MPFI)

Part
Nason logo

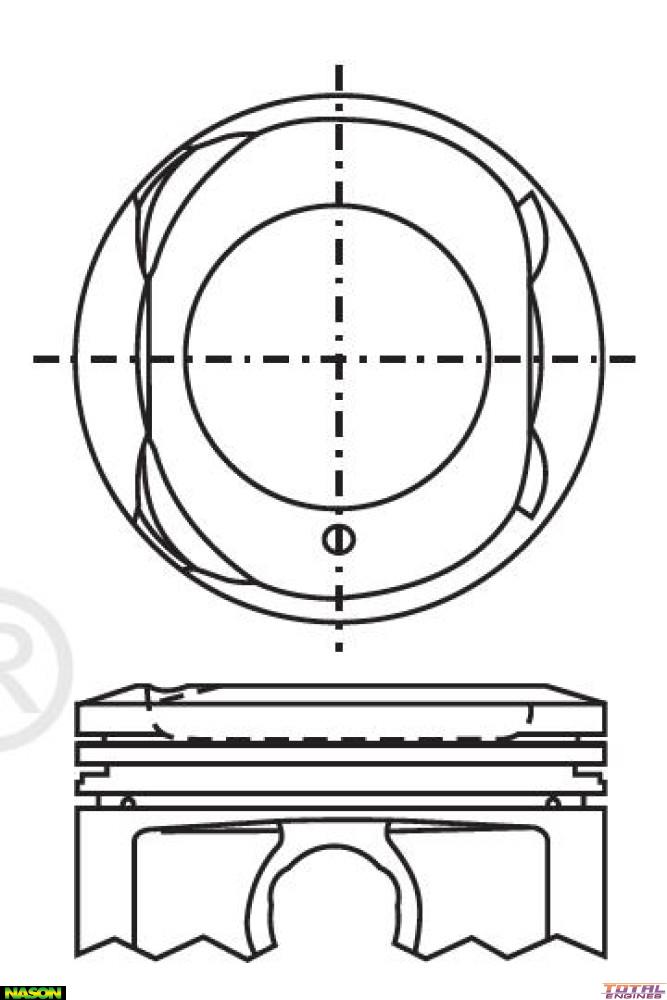

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.50mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.80mm
Comp Height: 32.80mm - 6.50mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5090
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Toyota Tarago ACR30R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • FWD Wagon 4 Door [06/2000 to 02/2006] 115KW With Auto Transmission
Toyota Tarago ACR50R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • FWD Wagon 4 Door [03/2006 to 09/2019] 125KW With Auto or Continuously Variable Transmission

Description

Nason, 0.50mm Oversize
