Toyota >> Townace >> YR30R >> 2.0 Litre 4 Cyl 3Y-E OHV 8v >> 10/1985 - 09/1996 3 Door Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Townace YR30R Van [10/1985 to 09/1996] (2.0L 3Y-E 4 Cyl OHV MPFI)

Part
Nason logo

Nason Piston & Pin Set

$209.14

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 1.00mm / .040"

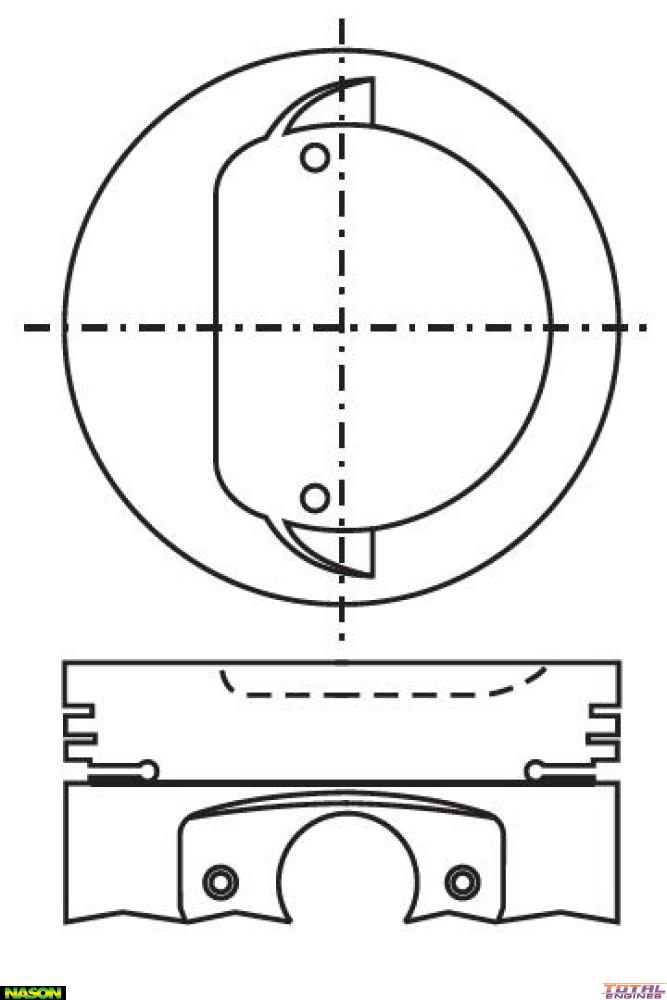

Head Type: Dish Top 2 Valve Reliefs
Piston Type: Cast
Length: 70.00mm
Comp Height: 35.00mm - 5.00mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4219 or 4219
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Toyota Townace YR21R (2.0 Litre 4 Cyl 3Y-E OHV 8v):
  • RWD Van 3 Door [05/1983 to 09/1996] 72KW With Auto or Manual Transmission
Toyota Townace YR30R (2.0 Litre 4 Cyl 3Y-E OHV 8v):
  • 4WD Van 3 Door [10/1985 to 09/1996] 72KW With Auto or Manual Transmission

Description

Product Description: Nason Piston & Pin Set 1.00 Oversize

Upgrade your engine’s performance with the Nason Piston & Pin Set 1.00 Oversize, meticulously engineered for Toyota Townace models YR21R, YR30R, and YR39R, all featuring the robust 2.0L engine. Ideal for both restoration projects and performance enhancements, this premium piston set promises a perfect fit and unparalleled reliability.

Key Features:

  • Complete Piston Set: This package includes 4 high-quality pistons and pins—everything you need for a comprehensive upgrade.
  • Precision Engineering: Each piston features a standard bore size of 86.00mm and is designed with a head type of dish top with 2 valve reliefs, ensuring optimal combustion efficiency and power generation.
  • Durable Construction: Crafted from high-quality cast material, our pistons are built to withstand the rigors of daily driving and competition, ensuring longevity and reliability under pressure.
  • Perfect Size for Customization: Each piston in this set is 1.00mm (.040\") oversized, providing you with the flexibility to accommodate worn cylinder bores and enhance engine performance.
  • Tailored Fit: With a piston length of 70.00mm and a compression height of 35.00mm - 5.00mm, these pistons are precisely engineered for a snug fit, maximizing the efficiency of your engine.
  • Favorable Pin Specifications: Featuring a press-fit pin type measuring 22.00mm x 66.00mm, coupled with a top ring width of 1.50mm, a 2nd ring width of 1.50mm, and an oil ring width of 4.00mm, this setup guarantees reduced friction and optimized oil management.
  • Compatibility: Specifically designed for Toyota Townace models YR21R, YR30R, and YR39R, ensuring a hassle-free installation process.

Elevate your vehicle’s performance and reliability with the Nason Piston & Pin Set 1.00 Oversize today. Perfect for both everyday driving and performance enthusiasts, this set combines quality craftsmanship with unbeatable value. Don't miss out—enhance your engine’s capabilities and keep your Toyota running smoothly for miles to come!
