Toyota >> Vellfire >> ANH20R >> 2.4 Litre 4 Cyl 2AZ-FE DOHC 16v >> 05/2008 - 01/2015 3 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Vellfire ANH20R Wagon [05/2008 to 01/2015] (2.4L 2AZ-FE 4 Cyl DOHC VVT MPFI)

Part
Nason logo

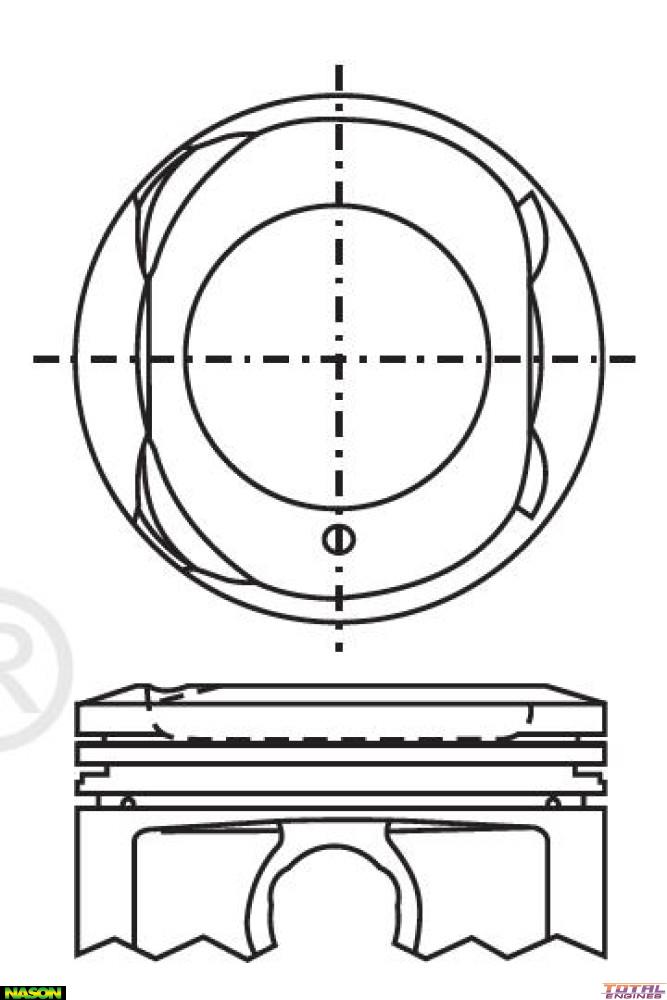

Nason Piston & pin set

$328.19

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.50mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.80mm
Comp Height: 32.80mm - 6.50mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5090

Tick This part will fit the following Vehicles:

Toyota Vellfire ANH20R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • FWD Wagon 3 Door [05/2008 to 01/2015] 126KW With Continuously Variable Transmission
Toyota Vellfire ANH25R (2.4 Litre 4 Cyl 2AZ-FE DOHC 16v):
  • ANH25 4WD Van - Passenger 3 Door [04/2008 to 01/2015] 126KW With Continuously Variable Transmission

Description

Nason, STD Size
