Toyota >> Vienta >> VCV10 >> 3.0 Litre V6 3VZ-FE DOHC 24v >> 10/1995 - 08/1997 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Vienta VCV10 Wagon [10/1995 to 08/1997] (3.0L 3VZ-FE V6 DOHC EFI)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2M4689 or 4689
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 22.00mm x 62.00mm
Comp Height: 34.00mm - 3.00mm
Length: 62.00mm
Piston Type: Cast

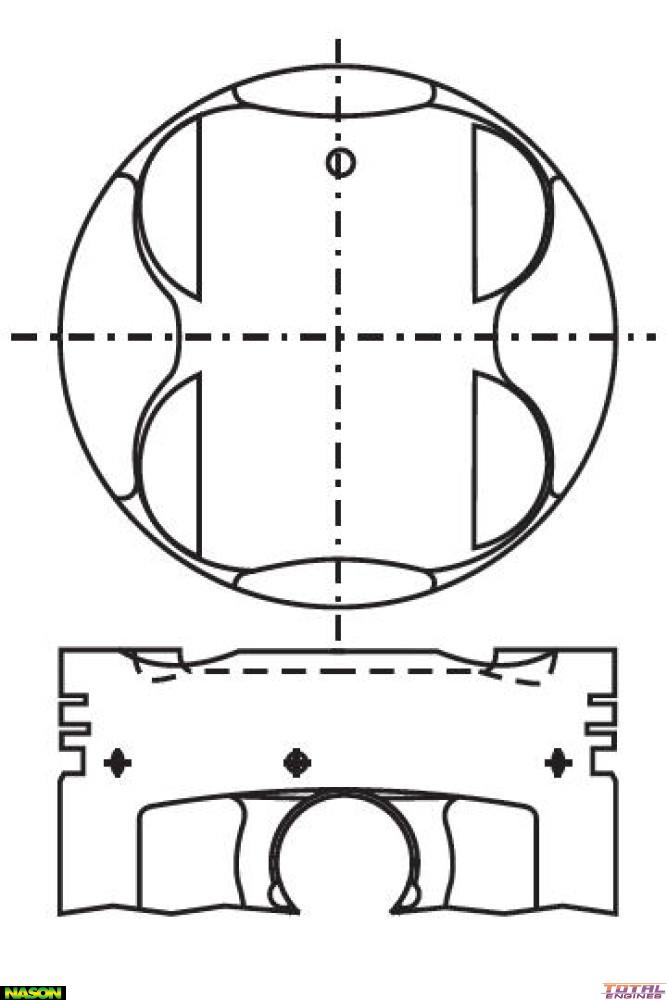

Head Type: Dish Top with 4 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 87.50mm
Piston Set: 6 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Vienta VCV10 (3.0 Litre V6 3VZ-FE DOHC 24v):
  • FWD Sedan 4 Door [10/1995 to 08/1997] 136KW With Auto or Manual Transmission
  • FWD Wagon 4 Door [10/1995 to 08/1997] 136KW With Auto Transmission

Description

Nason, 1.00mm Oversize
