Toyota >> Blade >> GRE156R >> 3.5 Litre V6 2GR-FE DOHC 24v >> MASTER 08/2007 - 04/2012 4 Door >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Blade GRE156R MASTER [08/2007 to 04/2012] (3.5L 2GR-FE V6 DOHC VVT MPFI)

Part
Nason logo

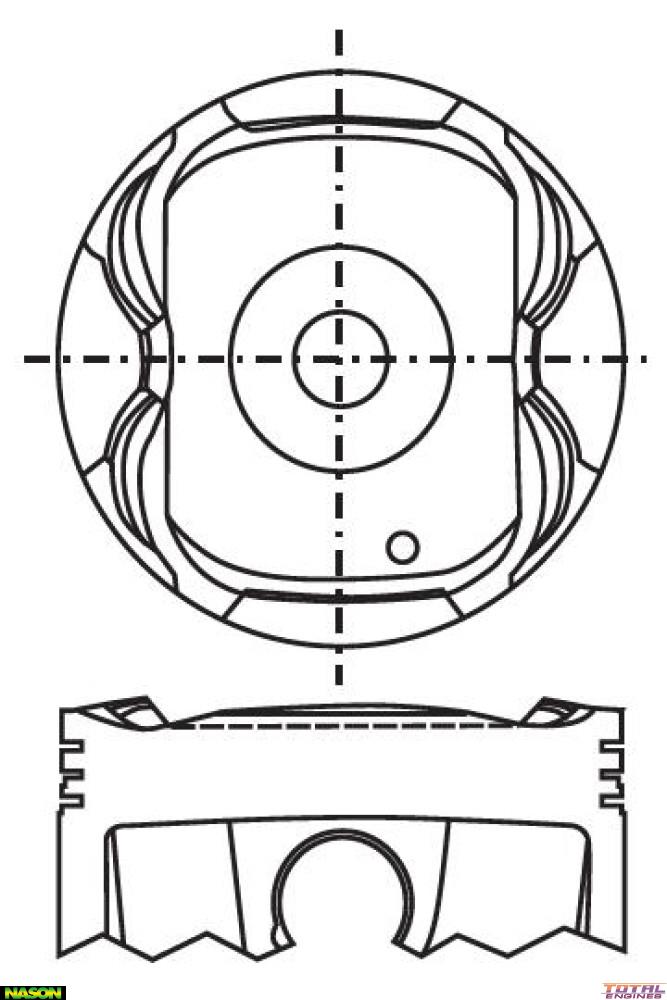

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 94.00mm
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 50.50mm
Comp Height: 31.50mm + 4.50mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C4511

Tick This part will fit the following Vehicles:

Toyota Blade GRE156R (3.5 Litre V6 2GR-FE DOHC 24v):
  • MASTER FWD 4 Door [08/2007 to 04/2012] 208KW With Auto Transmission

Description

Nason, STD Size
