Volkswagen >> Transporter >> T5 >> 2.5 Litre 5 Cyl BNZ SOHC 10v >> LWB 7J 08/2006 - 08/2008 4 Door Cab Chassis >> Nason Piston & pin set

Nason Piston & pin set Fits Volkswagen Transporter T5 LWB 7J Cab Chassis [08/2006 to 08/2008] (2.5L BNZ 5 Cyl SOHC Turbo Diesel Inj)

Part
Nason logo

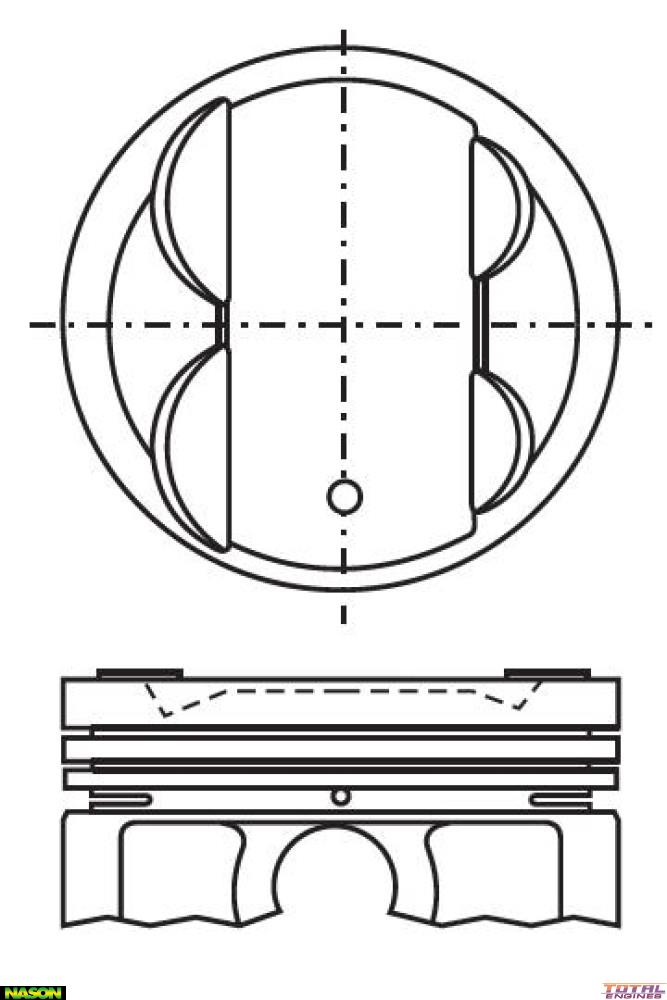

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$663.28

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.00mm
Size: 0.50mm / .020"
Head Type: Combustion Bowl & 4 Valve Reliefs
Piston Type: Cast
Length: 87.00mm
Comp Height: 47.00mm, -6.90mm, -18.10mm
Combustion Bowl OD: 46.00mm
Pin Size: 32.00mm x 80.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.30mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33952-0.50

Tick This part will fit the following Vehicles:

Volkswagen Transporter T5 (2.5 Litre 5 Cyl BNZ SOHC 10v):
  • LWB 7J FWD Cab Chassis 4 Door [08/2006 to 08/2008] 96KW With Auto or Manual Transmission

Description

Suits 4M42-0AT

Alfin, With Oil Gallery Cooling
