ACL Aluglide Main bearing set - 5M1228-STD

Part

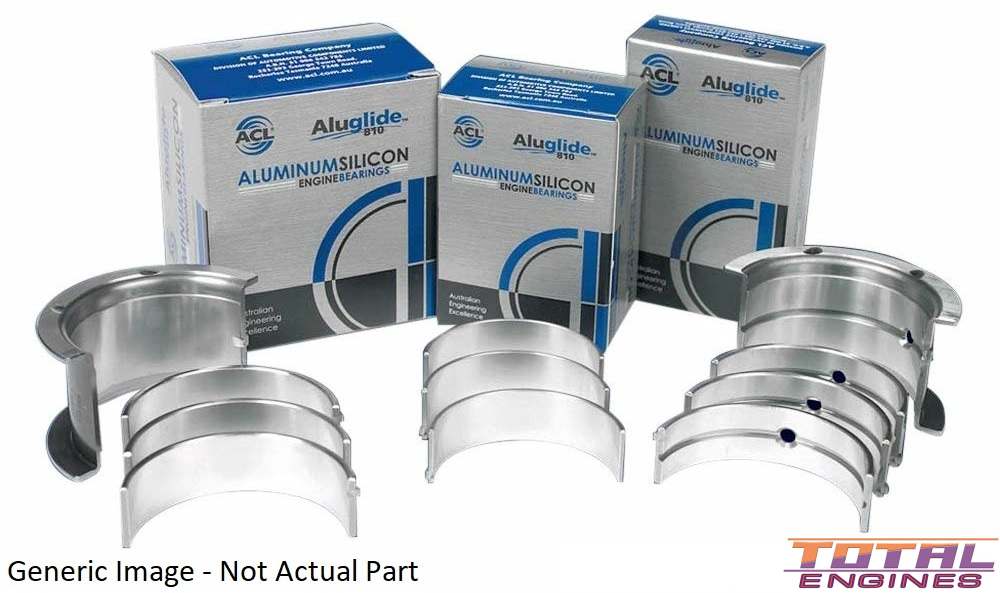

ACL Aluglide Main bearing set - 5M1228-STD

Out Of Stock

Specifications
Main Bearing (c):	1186A
Half Type:	Upper & Lower
OE Part Number 1:	MD195916
Min Std Shaft Size:	2.2435in / 56.985mm
Max Std Shaft Size:	2.2441in / 57mm
Min Std Tunnel Size:	2.4016in / 61mm
Max Std Tunnel Size:	2.4024in / 61.021mm
Max Wall At Crown:	0.0783in / 1.99mm
Max Overall Length:	0.8268in / 21mm
Min Vertical Oil Clearance:	0.0008in / 0.02mm
Max Vertical Oil Clearance:	0.0032in / 0.082mm
Material:	F810
Main Bearing (c):	1187A(F)
Half Type:	Identical Halves
OE Part Number 1:	MD195921
Min Std Shaft Size:	2.2435in / 56.985mm
Max Std Shaft Size:	2.2441in / 57mm
Min Std Tunnel Size:	2.4016in / 61mm
Max Std Tunnel Size:	2.4024in / 61.021mm
Max Wall At Crown:	0.0783in / 1.99mm
Max Overall Length:	1in / 25.4mm
Min Vertical Oil Clearance:	0.0008in / 0.02mm
Max Vertical Oil Clearance:	0.0032in / 0.081mm
Material:	F810

Description

With 1 Flanged Shell
