ACL Race Series >> ACL Race Series Main bearing set-performance - 5M590H-009

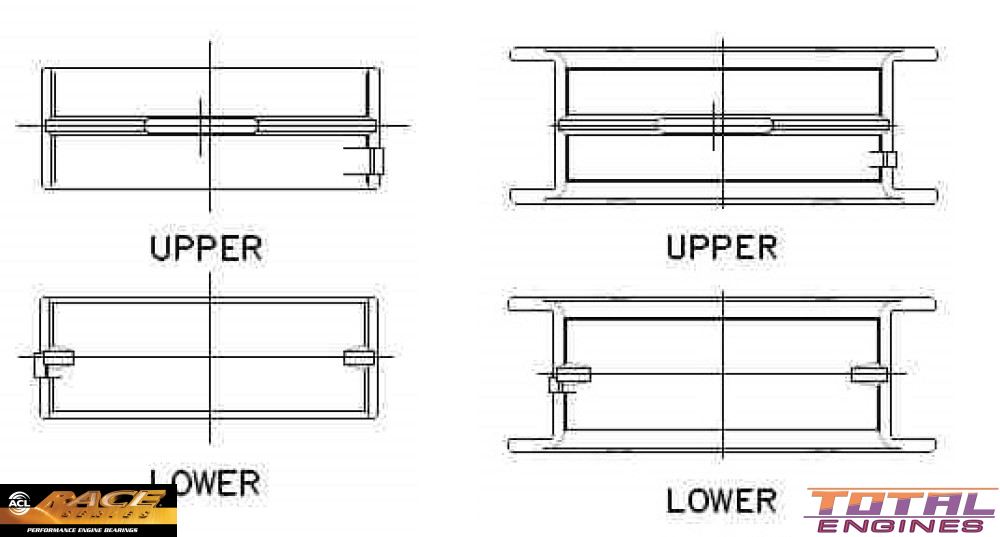

ACL Race Series Main bearing set-performance - 5M590H-009

Part
ACL Race Series logo

ACL Race Series Main bearing set-performance - 5M590H-009

Out Of Stock

Specifications
Material: Race Series (Tri-Metal)
Position: 1,2,4,5
Std Shaft Diam: 2.2482"/2.2490" (57.104mm/57.125mm)
Oil Clearance: TBA
Maximum Wall: 0.0957" (2.431mm)
Housing Bore: 2.4412"/2.4420" (62.006mm/62.027mm)
Max Length: 0.8850" (22.480mm)
Position: 3
Std Shaft Diam: 2.2482"/2.2490" (57.104mm/57.125mm)
Oil Clearance: TBA
Maximum Wall: 0.0957" (2.431mm)
Housing Bore: 2.4412"/2.4420" (62.006mm/62.027mm)
Max Length: 1.1330" (28.780mm)
Size: 0.225mm Oversize
