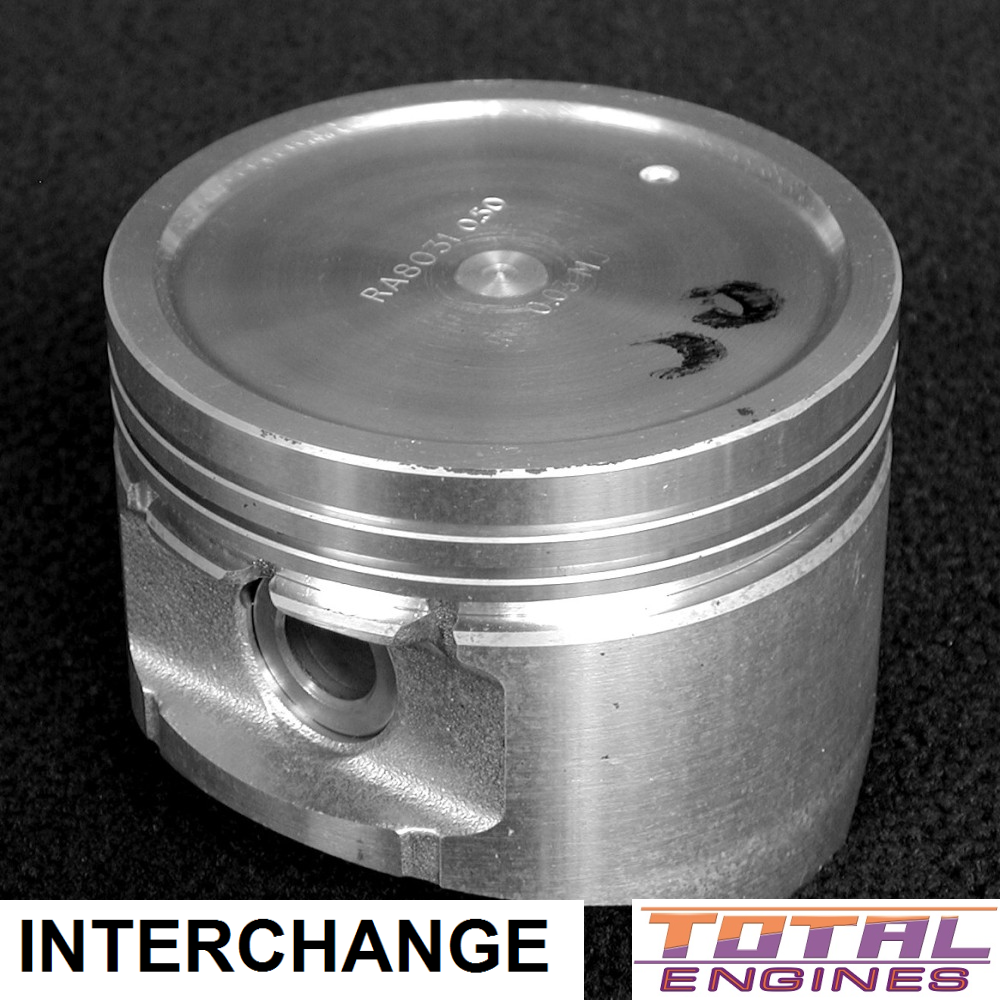

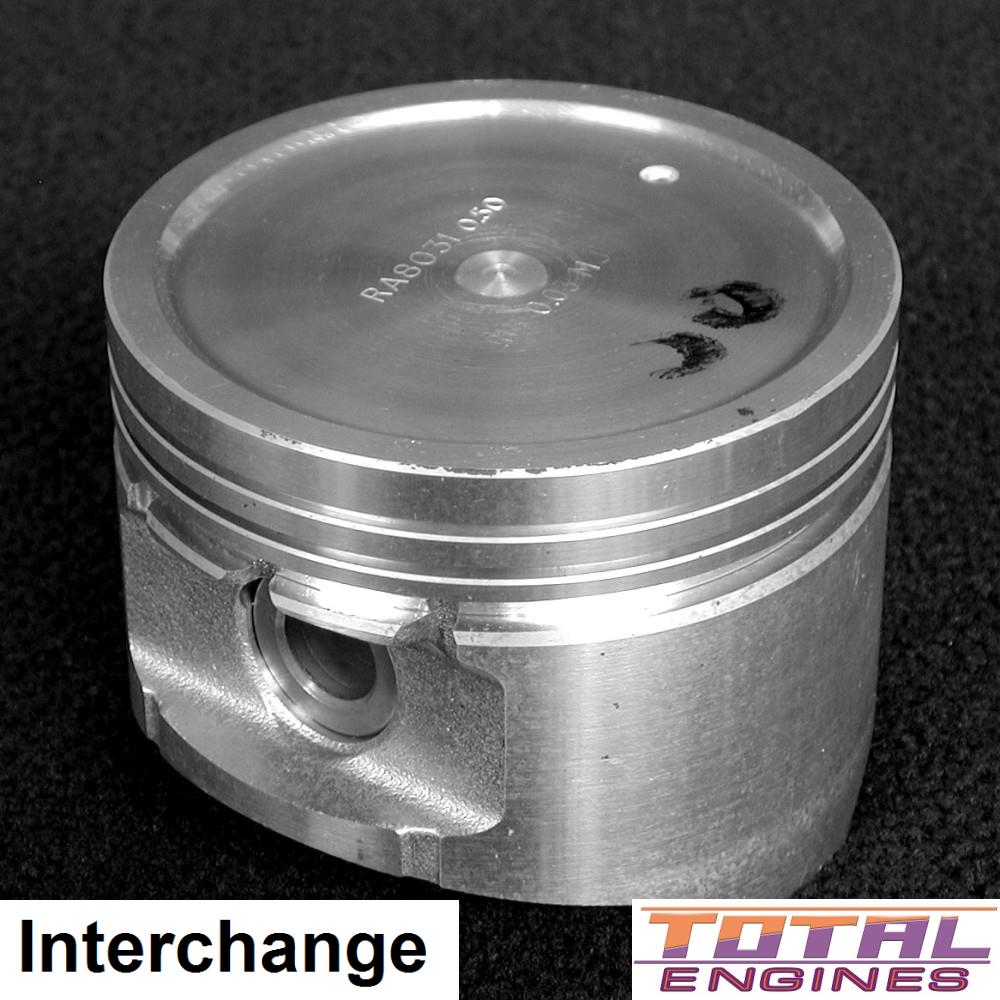

INTERCHANGE Piston & ring set - 4KRY8031-1.00

Specifications
Recommended Piston To Bore Clearance:	0.03mm / 0.0012in
Measuring Point Dim From Bottom Skirt:	0.00mm / 0.0000in

Description

Bowl : Round No Valve Reliefs

Comp HT : 36.40mm

Combustion Chamber Depth : -2.00mm

Total Length : 70.70mm

Top Ring : 1.50mm

2nd Ring : 1.50mm

Oil Ring : 4.00mm

Pin : Press Fit
