INTERCHANGE Piston & ring set - PKNYD25-A-1.00

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	89.00mm
Size:	1.00mm/.040"

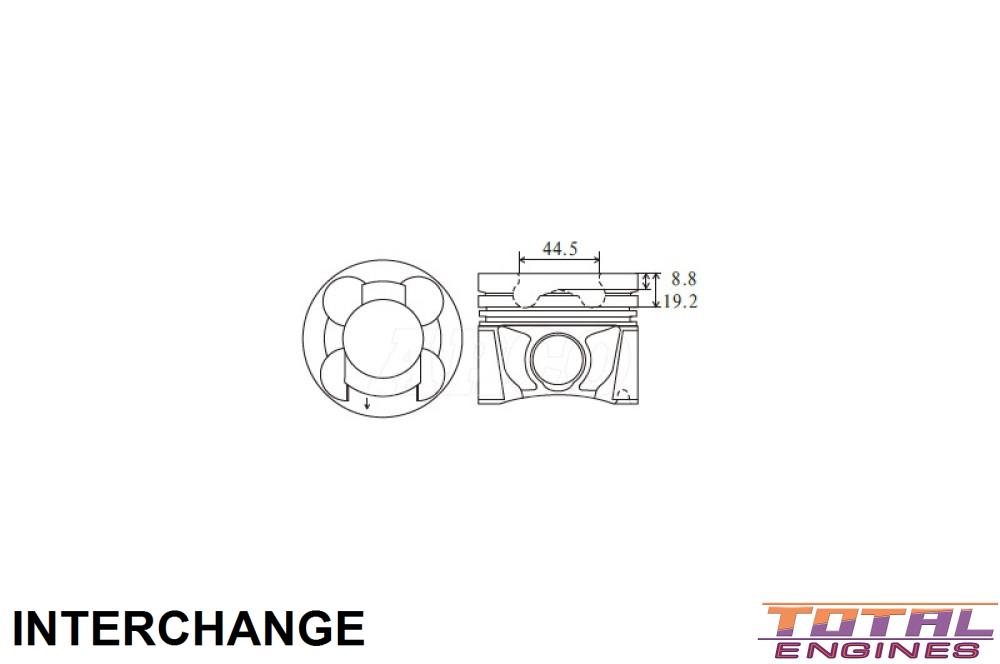

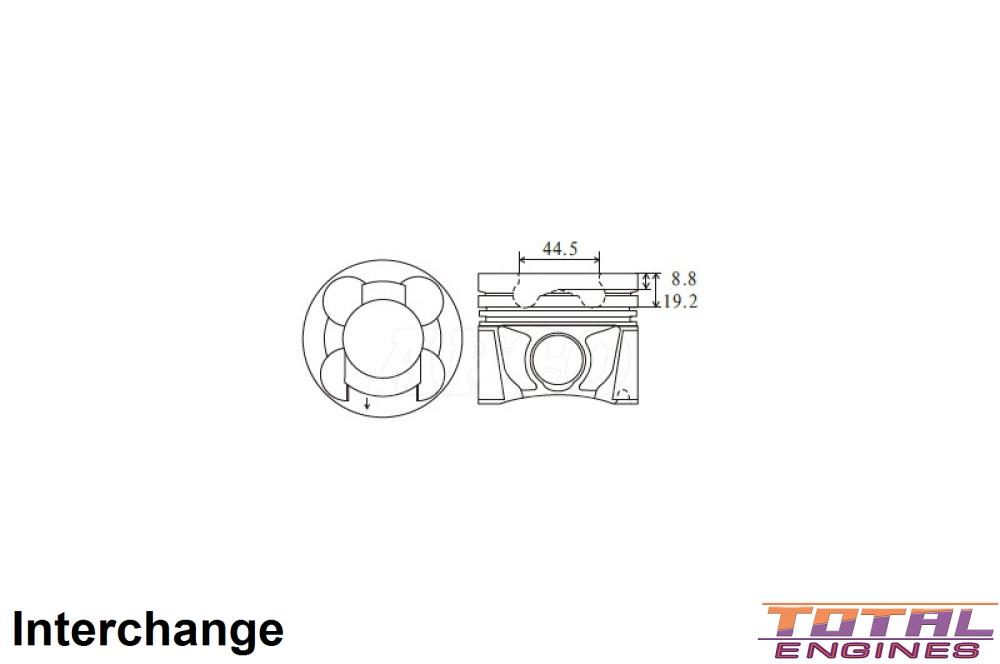

Head Type:	Dish top with four valve reliefs
Piston Type:	Cast
Length:	73.80mm
Comp Height:	48.90mm - 8.80mm -19.20mm
Combustion Bowl OD:	44.50mm
Pin Size:	28.00mm x 71.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm

Description

Suits R51M & D40M 01/05 to 09/06

Alfin inserts, Oil gallery cooling, MOS2 coated skirts
