Includes Head Gasket - D-Max & Mu-X From 11/2012 TO 06/2014

D-Max & Mu-X From 11/2012 To 06/2014

Includes 3 Notch Head Gasket

Use With NHBS076 Head Bolts

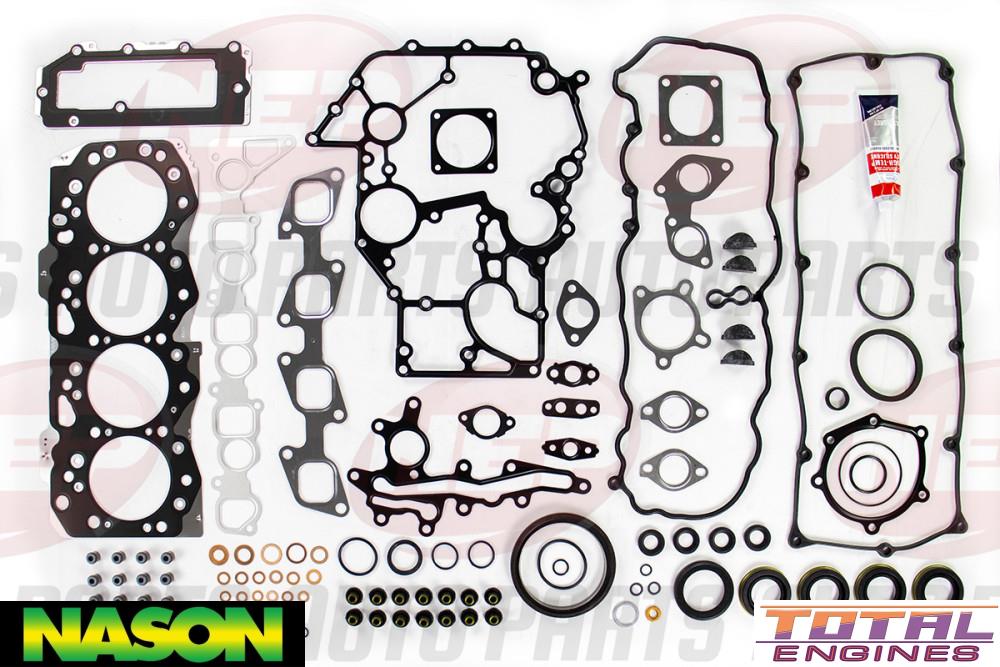

Set Contents

1 X Head Gasket - 3 Notch

1 X Timing Cover - 3 Notch

1 X Rocker Cover

14 X Rocker Cover Bolt Seals

1 X Oil Filler Cap

4 X Cylinder Head Half Moon Seals

4 X Injector Seal Rocker Cover

4 X Injector Seal Head

16 X Valve Stem Seals

1 X Tensioner Gasket

1 X Water By Pass Seal

1 X Water By Pass Gasket to Oil Cooler

1 X Water Suction Pipe to Block Seal

1 X Inlet Manifold Gasket

1 X Throttle Body Gasket

1 X Exhaust Manifold Gasket

1 X Exhaust Flange Gasket to Cat

1 X Thermostat Housing Seal

1 X Turbo to Exh Gasket

1 X Turbo to Water Pipe Gasket

4 X Injector Nozzle Washer to Head

4 X Injector Nozzle Washer to Pipe

1 X Gasket Turbo Oil Feed Pipe to Turbo

1 X Gasket Turbo Oil Feed Pipe to Engine

4 X Gasket Turbo Oil Feed Pipe Washer

2 X EGR Cooler Gasket to Head & Exhaust

1 X EGR Valve Gasket

1 X Crankshaft Postion Sensor Gasket

1 X Block to Sump O-Ring

1 X Block Seal - Nipple

1 X Block Seal - Oil Pressure Adaptor

1 X Block Seal - Drivers Side

1 X Sump Plug Washer ID

1 X Dip Stick tube O-Ring

1 X Crankshaft Seal - Front

1 X Crankshaft Seal - Rear

1 X Rubber Spacer

1 X Vacum Pump Gasket To Cover

6 X Vacum Pump Washer to Pipes

2 X Vacum Pump Washer to Elbow Pipes

1 X Vacum Pump Washer to Elbow Pipes

1 X Timing Cover Gasket to Case Front

1 X Timing Cover Gasket to Block

1 X Water pump Gasket

1 X Fuel Pump to O-Ring

2 X Fuel Pump Pipe to Pump Washer

1 X Fuel Presure Limiter to Fule Rail Washer

1 X Fuel Pump Sensor Washer

2 X Oil Cooler Seal

1 X Oil Cooler Plug Seal

1 X Oil Filter Housing to Oil Cooler

1 X Oil Pick Up Gasket

1 X Sealant 100ML Vibra-Tite Advanced Grey
