Nason >> Nason Piston & pin set - 1DP2028-0.50

Nason Piston & pin set - 1DP2028-0.50

Part
Nason logo

Nason Piston & pin set - 1DP2028-0.50

Out Of Stock

Specifications
Piston Set: 1 x Pistons & Pins
Std Bore Size: 88.00mm
Size: 0.50mm / .020"
Head Type: Dish Top With 4 Valve Relief
Piston Type: Cast
Length: 72.30mm

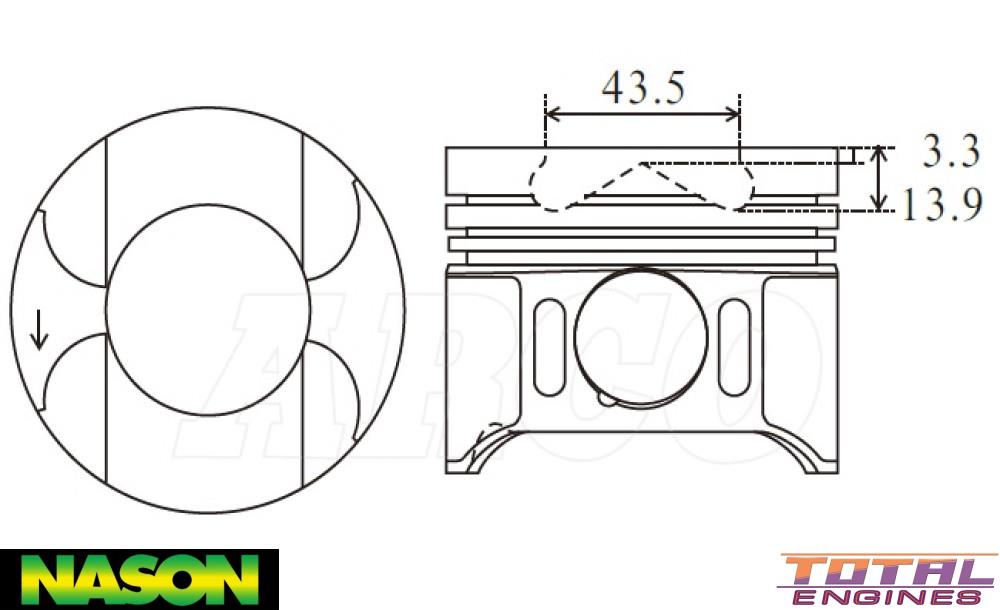

Comp Height: 42.30mm, -3.30mm, -13.90mm
Combustion Bowl OD: 43.50mm
Pin Size: 30.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 2D7291-STD

Description

Suits Tapered Conrods - Single Piston

Alfin Insert & Oil Gallery Cooling
