Nason Piston & pin set - 3P1007-0.50

Part

Nason Piston & pin set - 3P1007-0.50

Out Of Stock

Specifications
Piston Set:	3 x Piston & Pins
Std Bore Size:	68.50mm
Size:	0.50mm / .020"

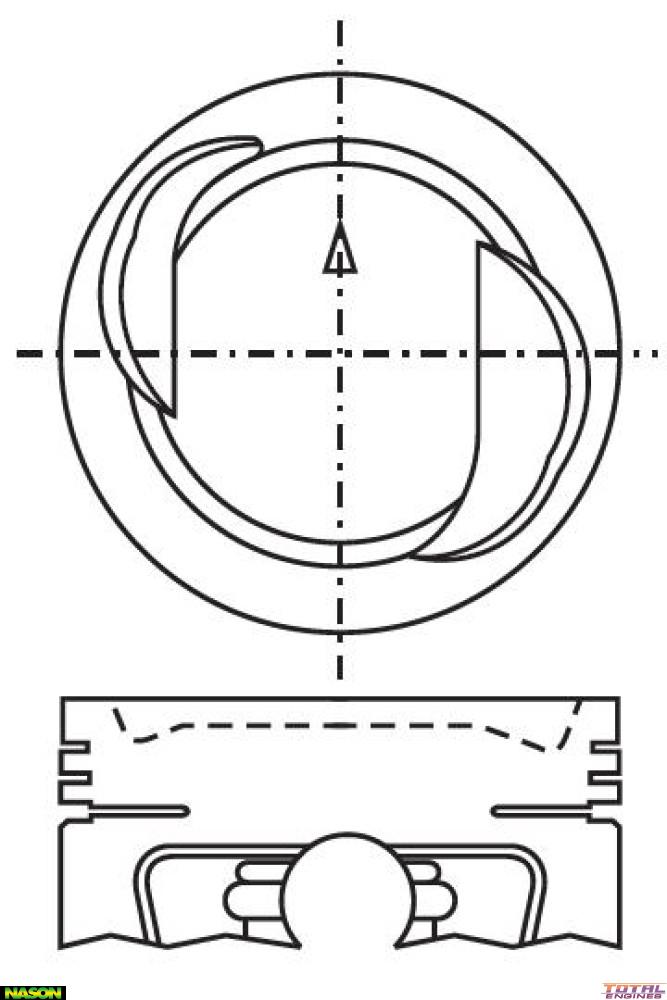

Head Type:	Dish Top 2 Valve Reliefs
Piston Type:	Cast
Length:	55.00mm
Comp Height:	25.00mm - 3.00mm
Pin Size:	16.00mm X 53.50mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.80mm
Ring Set:	2C6185
