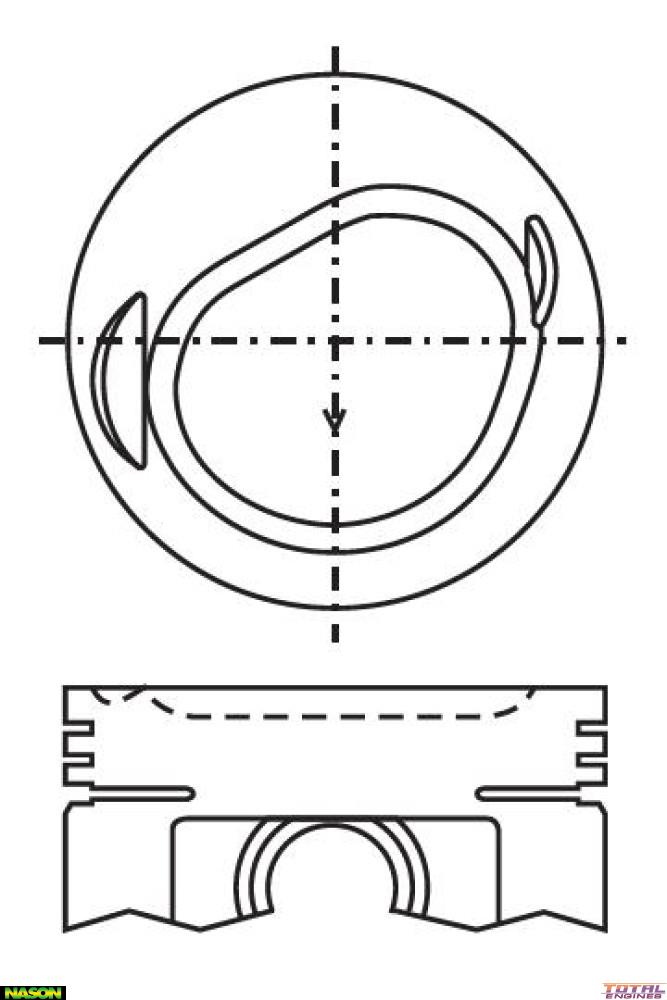

Nason Piston & pin set - 3P1202-0.50

Part

Nason Piston & pin set - 3P1202-0.50

Out Of Stock

Specifications
Piston Set:	3 x Piston & Pins
Std Bore Size:	76.00mm
Size:	0.50mm / .020"
Head Type:	Dish Top 2 Valve Reliefs
Piston Type:	Cast
Length:	60.60mm
Comp Height:	28.50mm - 3.80mm
Pin Size:	18.00mm X 60.00mm
9in Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.80mm
Ring Set:	2C4459
