Nason >> Nason Piston & pin set - 3P1203-1.00

Nason Piston & pin set - 3P1203-1.00

Part
Nason logo

Nason Piston & pin set - 3P1203-1.00

$88.61

Specifications
Piston Set: 3 x Piston & Pins
Std Bore Size: 76.00mm
Size: 1.00mm / .040"

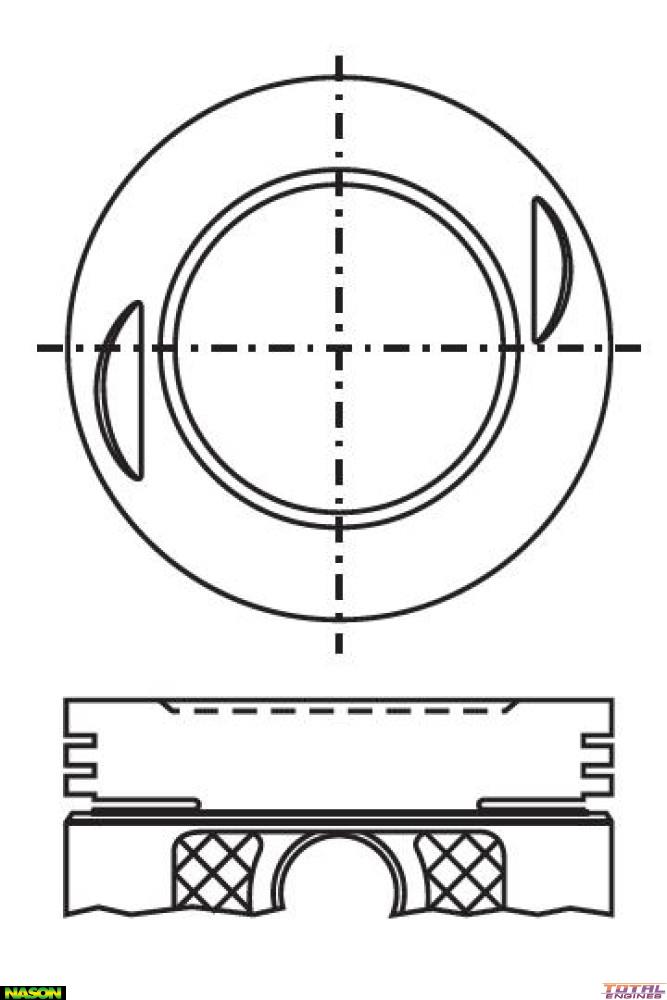

Head Type: Dish Top 2 Valve Reliefs
Piston Type: Cast
Length: 60.50mm
Comp Height: 28.50mm - 1.50mm
Pin Size: 18.00mm X 60.00mm
9in Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4459
Size: 1.00mm Oversize
