Nason >> Nason Piston & pin set - 4DP2000-0.50

Nason Piston & pin set - 4DP2000-0.50

Part
Nason logo

Nason Piston & pin set - 4DP2000-0.50

$865.51

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 83.00mm
Size: 0.50mm
Head Type: Combustion Bowl With 4 Valve Reliefs
Piston Type: Cast
Length: 75.50mm

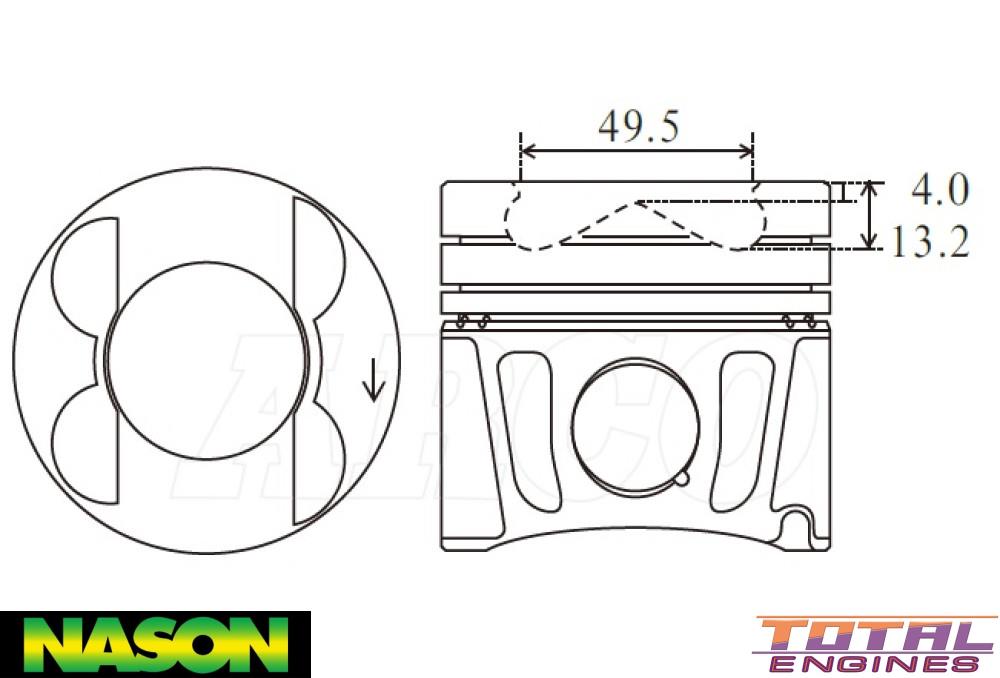

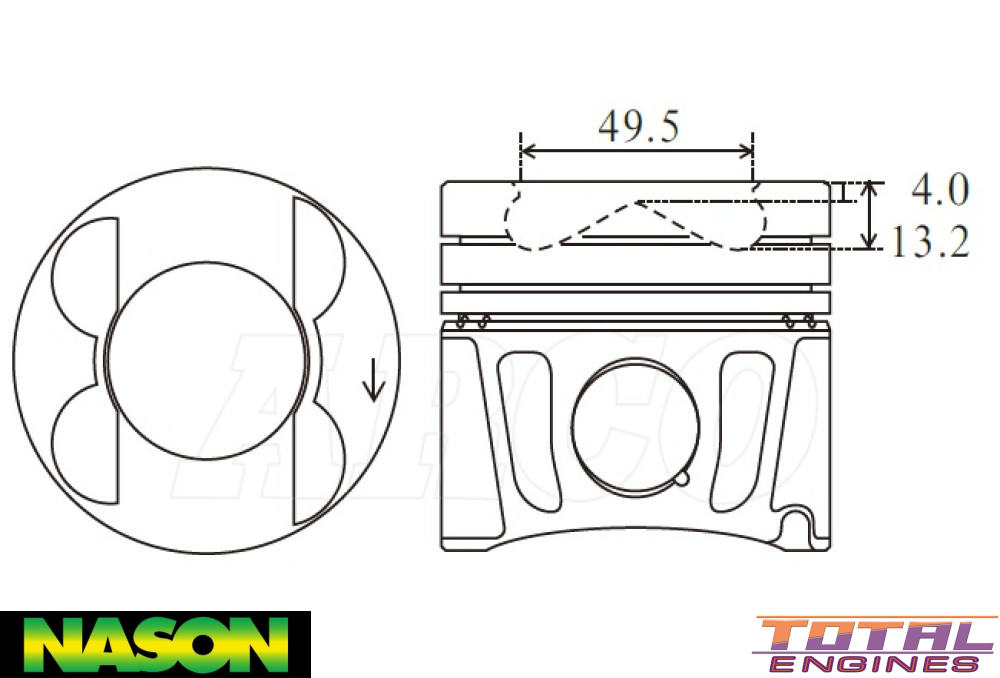

Comp Height: 48.50mm - 13.20mm -4.00mm
Combustion Bowl OD: 49.50mm
Pin Size: 30.00mm x 66.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.75mm
Oil Ring Width: 2.00mm
Ring Set: 2D7440-0.50MM

Description

Pistons Only- Does Not Include Rings

Suits OM651.911/.931/.924/.940/.955/.956/.957/.960/.980

Alfin Inserts, Oil Gallery Cooling, Pin Bush Inserted
