Nason >> Nason Piston & pin set - 4DP2002-0.50

Nason Piston & pin set - 4DP2002-0.50

Part
Nason logo

Nason Piston & pin set - 4DP2002-0.50

$617.76

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 89.00mm
Size: 0.50mm / .020"

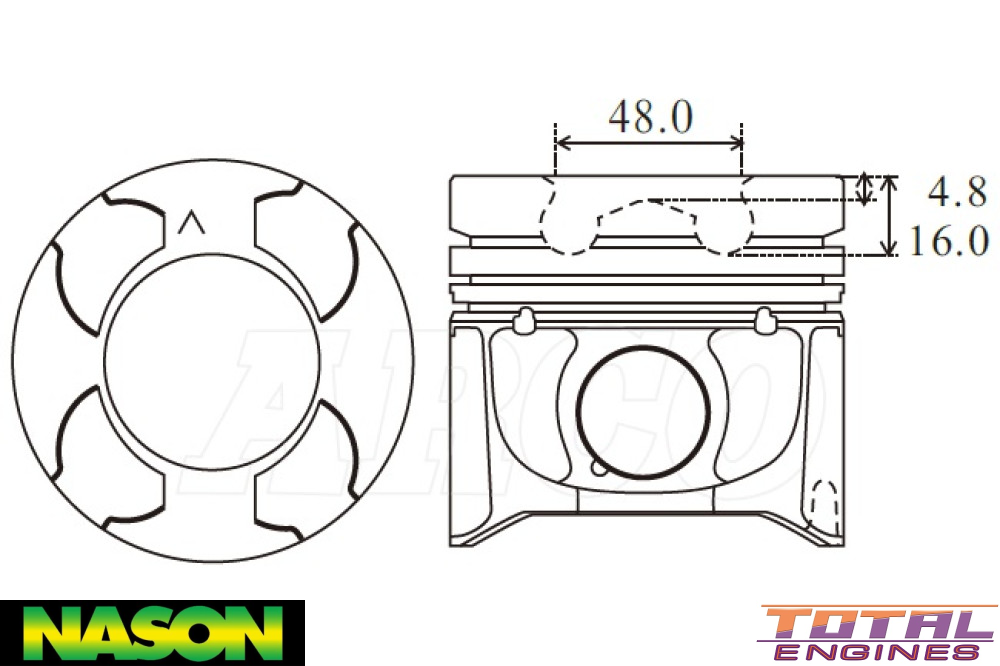

Head Type: Combustion Bowl with 4 Valve Reliefs
Piston Type: Cast
Length: 76.80mm
Comp Height: 48.80mm, -7.70mm -16.60mm
Combustion Bowl OD: 48.50mm
Pin Size: 28.00mm x 68.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 34134-0.50

Description

Suits R51M & D40M 01/2010 on

Alfin Inserts, Oil Gallery Cooling

Replaces PKNYD25LL-A-0.50
