Nason Piston & pin set - 4DP2003-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	91.00mm
Size:	0.50mm
Head Type:	Combustion Bowl With 2 Valve Reliefs
Piston Type:	Cast
Length:	83.70mm

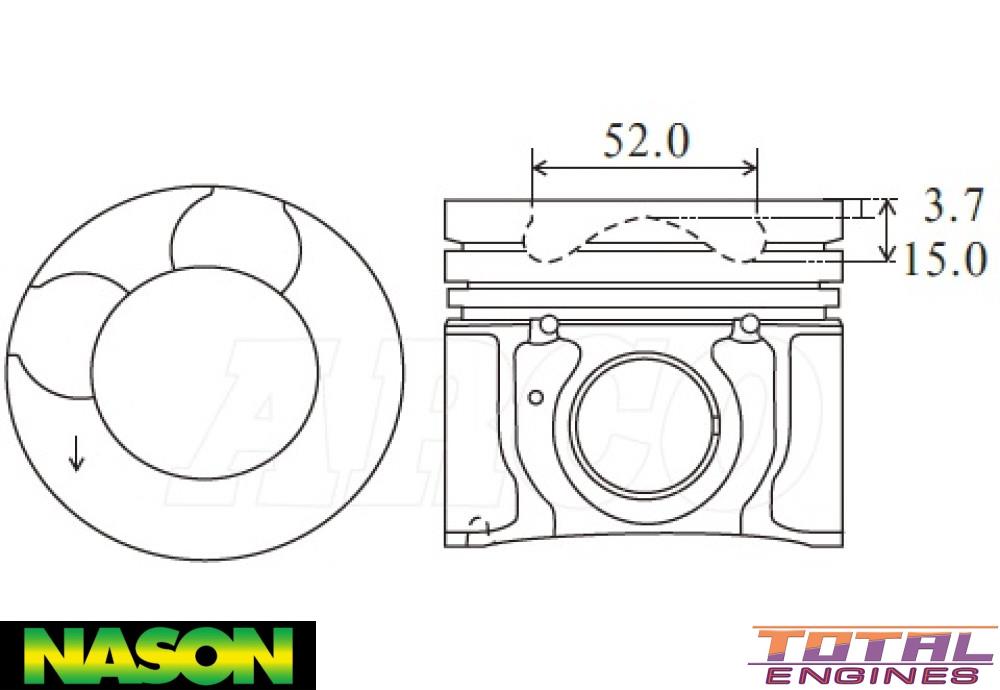

Comp Height:	54.20mm, -3.70mm, 15.00mm
Combustion Bowl OD:	52.00mm
Pin Size:	33.00mm x 74.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	42037-0.50

Description

Suits Up To 2012 with 52.00mm Combustion Bowl

Alfin Insert, Oil Gallery Cooling, Pin Bush Inserted
