Nason Piston & pin set - 4DP2004-STD

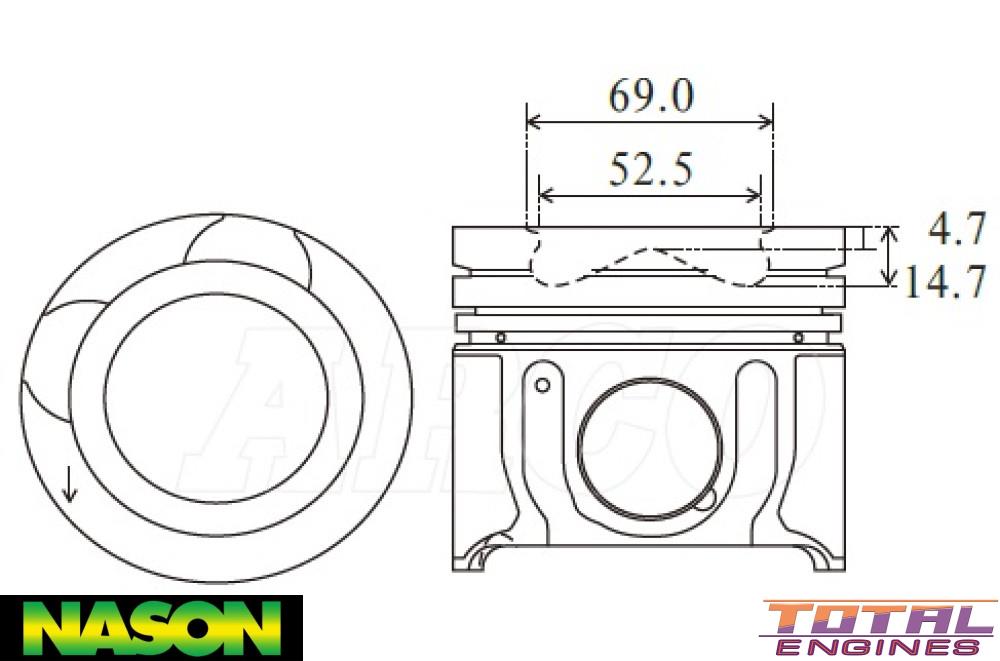

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	91.00mm
Size:	Std
Head Type:	Combustion Bowl With 2 Valve Reliefs
Piston Type:	Cast
Length:	83.70mm
Comp Height:	54.20mm, -1.70mm, -14.70mm
Combustion Bowl OD:	52.50mm
Pin Size:	33.00mm x 74.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	42037-STD

Description

Suits From 2012 With 52.50mm Combustion Bowl

Alfin Insert, With Oil Gallery Cooling
