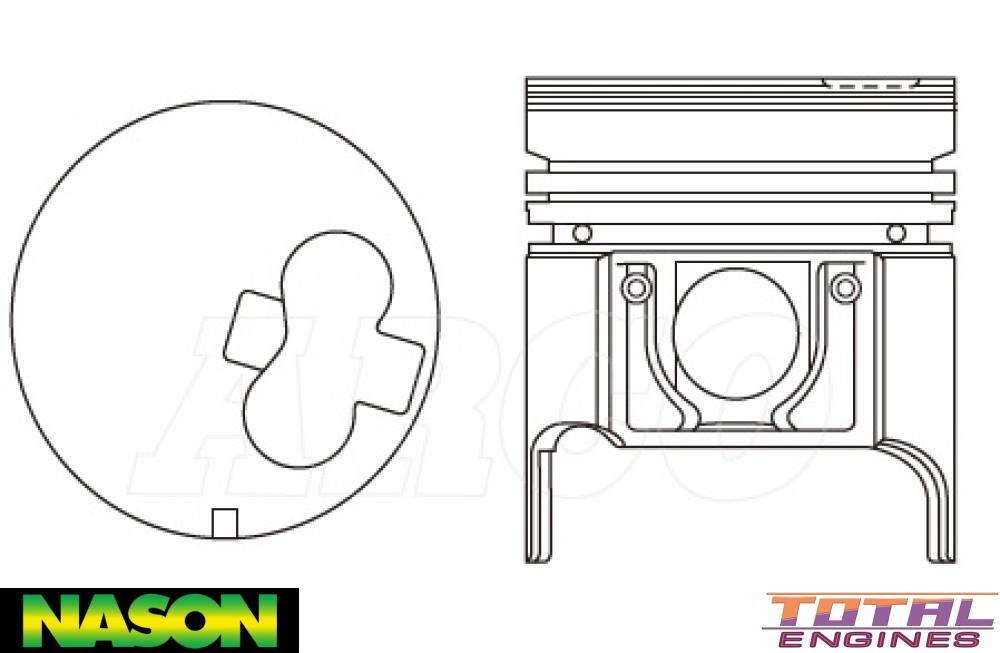

Nason Piston & pin set - 4DP2005-1.00

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	90.00mm
Size:	1.00mm
Head Type:	Clover Leaf Combustion Relief
Piston Type:	Cast
Length:	99.00mm
Comp Height:	52.00mm, -1.40mm
Pin Size:	27.00mm x 73.50mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	35862-1.00

Description

Combustion Bowl OD
