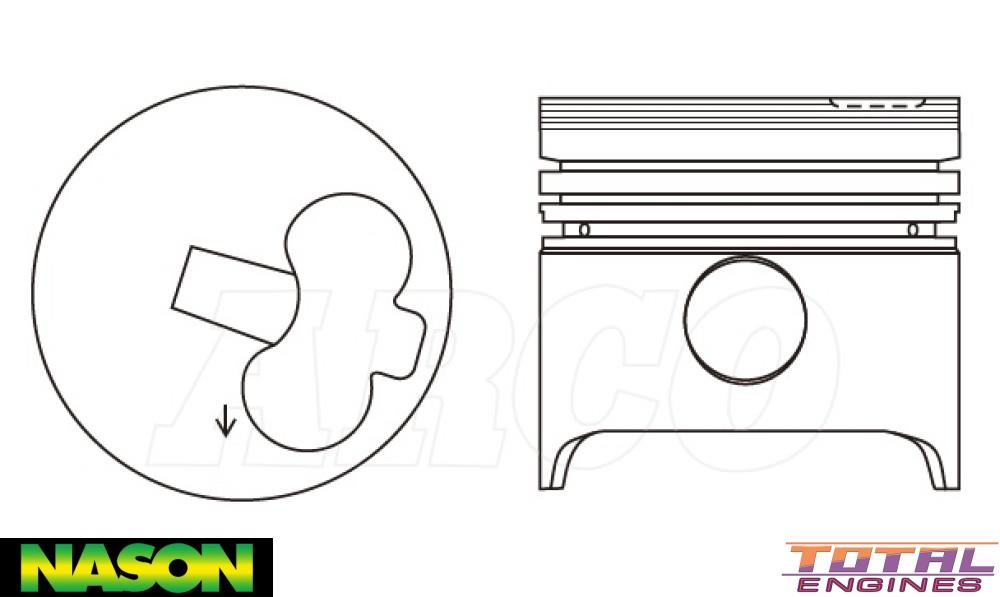

Nason Piston & pin set - 4DP2006-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	92.00mm
Size:	Std
Head Type:	Clover Leaf Combustion Relief
Piston Type:	Cast
Length:	96.20mm
Comp Height:	49.30mm, -1.50mm
Pin Size:	27.00mm x 74.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	35867-STD

Description

Suits Up To 8/88 With 49.30mm Comp Height

Combustion Bowl OD
