Nason Piston & pin set - 4DP2010-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	96.00mm
Size:	Std

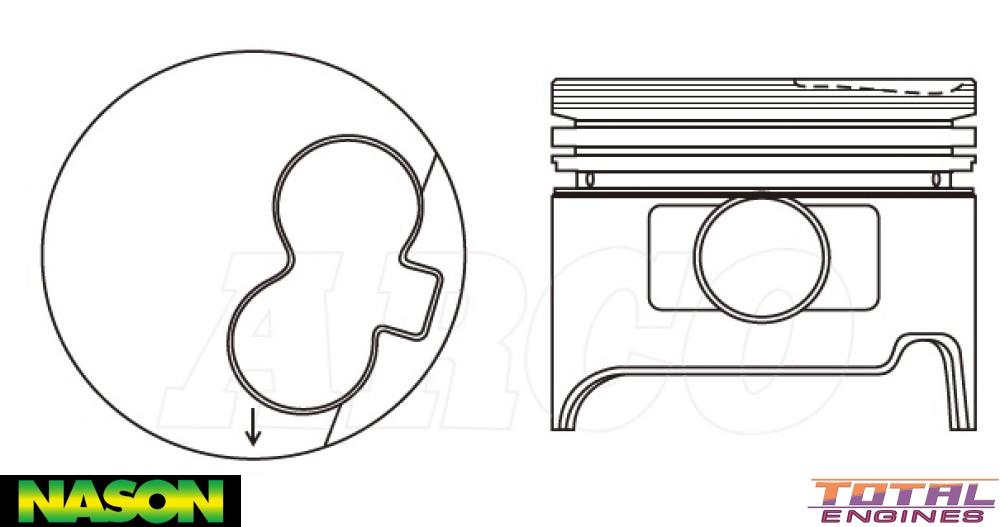

Head Type:	Clover Leaf Combustion Relief
Piston Type:	Cast
Length:	80.30mm
Comp Height:	42.30mm, -0.15mm, -2.00mm
Pin Size:	29.00mm x 74.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	35892-STD

Description

Combustion Bowl OD

Alfin Insert
