Nason Piston & pin set - 4DP2011-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	99.50mm
Size:	0.50mm

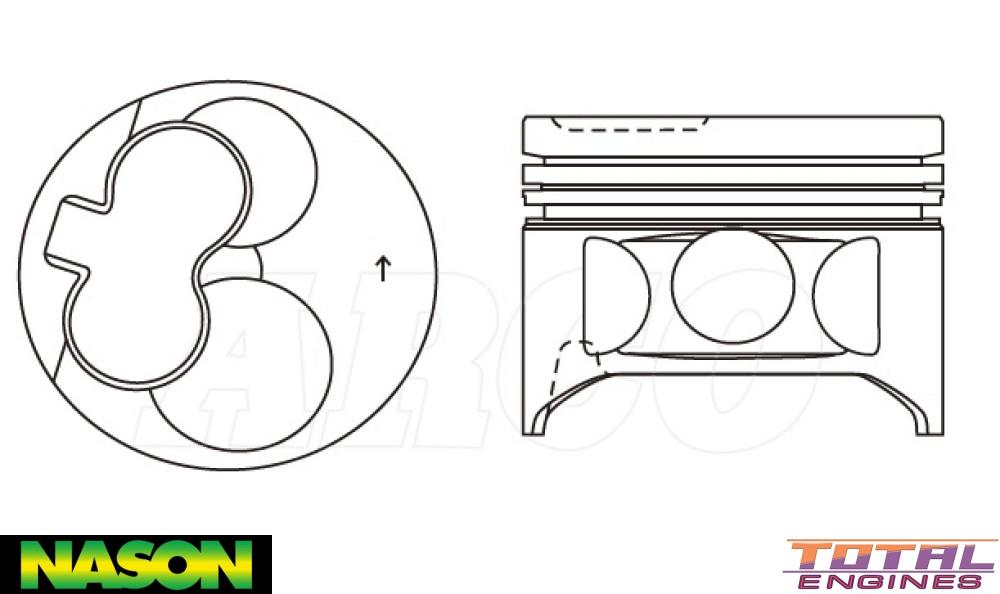

Head Type:	Clover Leaf Combustion Relief With 2 Valve Relief
Piston Type:	Cast
Length:	80.30mm
Comp Height:	42.30mm, -0.90mm, -2.20mm
Pin Size:	29.00mm x 73.90mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	35929-0.50

Description

Combustion Bowl OD

Alfin Insert, With Oil Gallery Cooling
