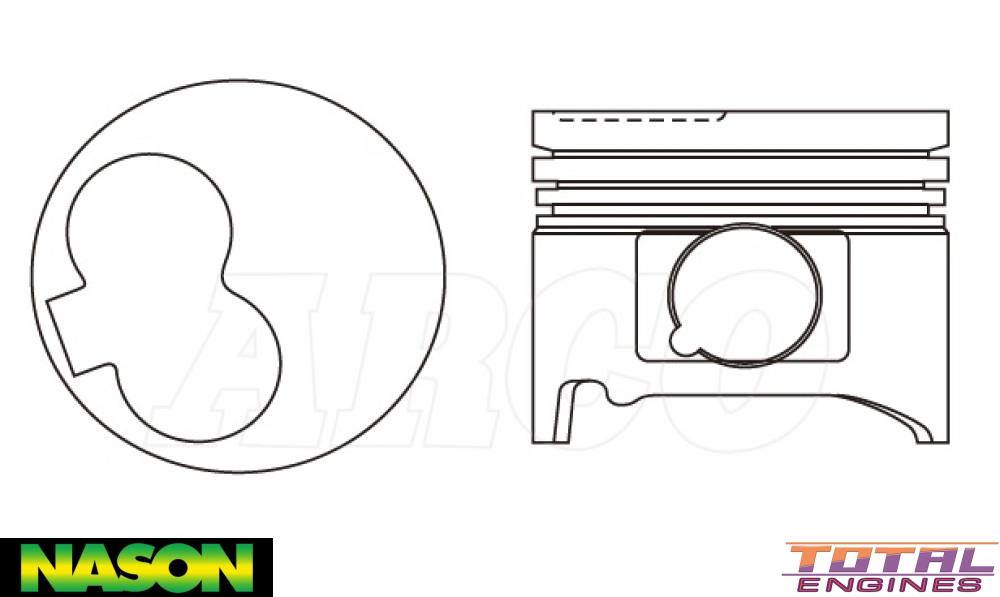

Nason Piston & pin set - 4DP2012-1.00

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	96.00mm
Size:	1.00mm
Head Type:	Clover Leaf Combustion Relief
Piston Type:	Cast
Length:	80.70mm
Comp Height:	45.70mm, -2.50mm
Pin Size:	34.00mm x 73.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	35937-1.00

Description

Without Valve Reliefs

Combustion Bowl OD

Alfin Insert, With Oil Gallery Cooling, Anodized Head
