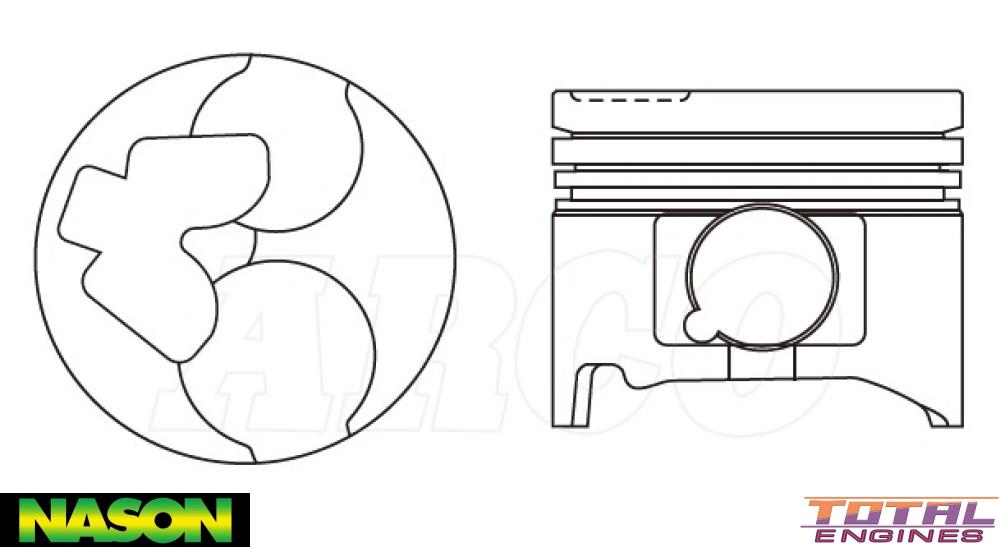

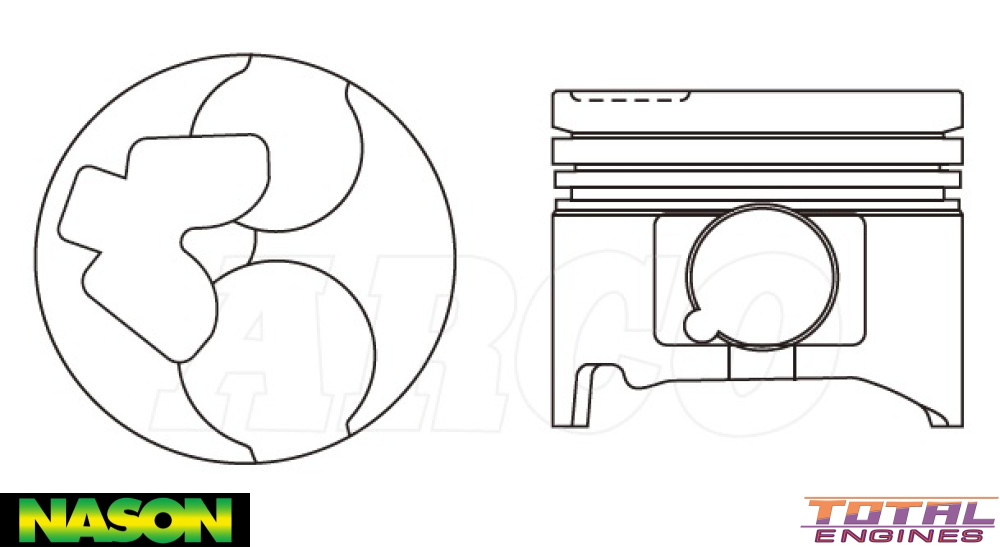

Nason Piston & pin set - 4DP2013-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	96.00mm
Size:	Std
Head Type:	Clover Leaf Combustion Relief With 2 Valve Relief
Piston Type:	Cast
Length:	80.70mm
Comp Height:	45.80mm, -0.90mm, -2.40mm
Pin Size:	34.00mm x 73.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	35937-STD

Description

With Valve Reliefs

Combustion Bowl OD

Alfin Insert, With Oil Gallery Cooling, Anodized Head
