Nason Piston & pin set - 4DP2016-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	96.00mm
Size:	Std
Head Type:	Combustion Bowl With 4 Valve Relief
Piston Type:	Cast
Length:	78.50mm
Comp Height:	49.60mm, -8.40mm, -17.50mm
Combustion Bowl OD:	53.00mm
Pin Size:	34.00mm x 73.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	35987-STD

Description

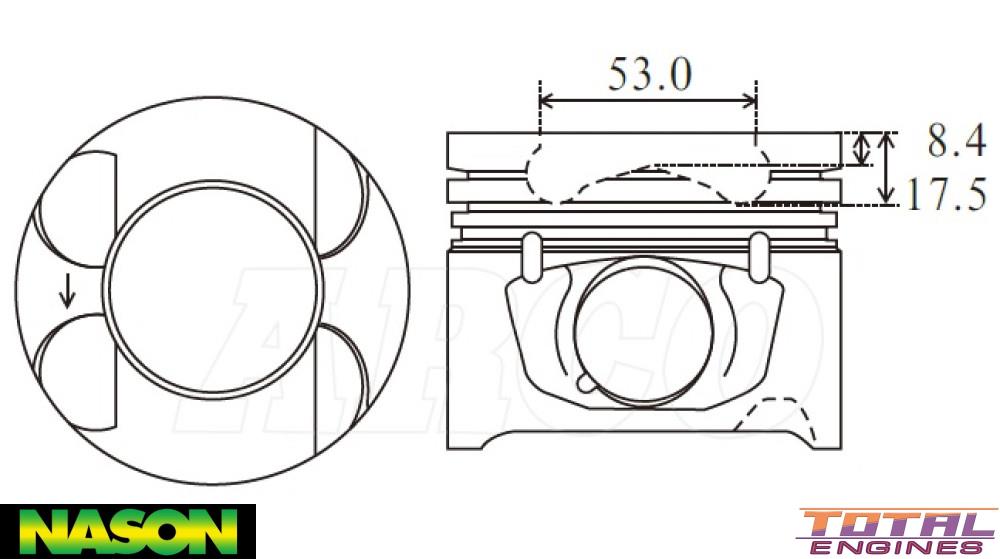

53.00mm Combustion Bowl, 8.4mm To Piston Crown

Alfin Insert, With Oil Gallery Cooling
