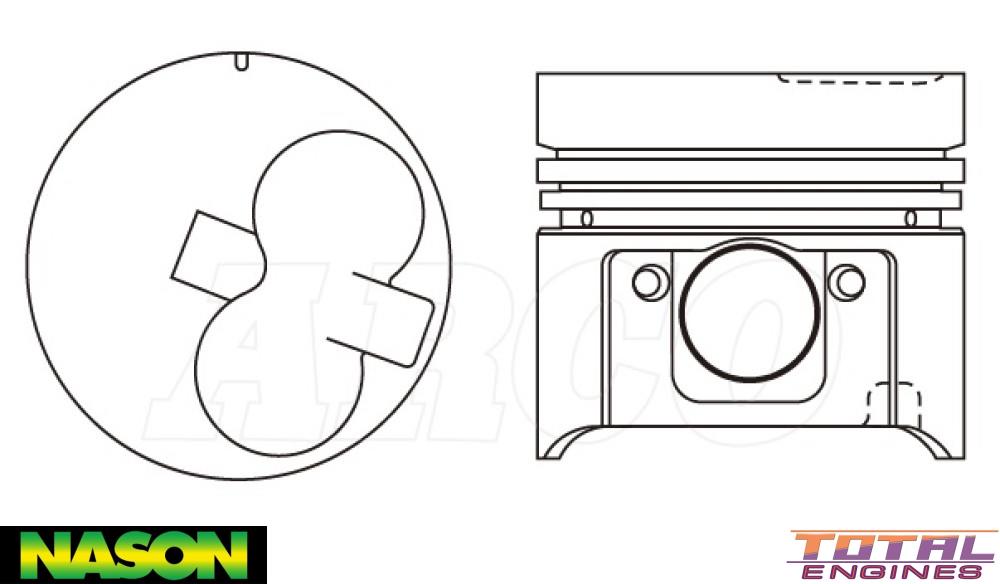

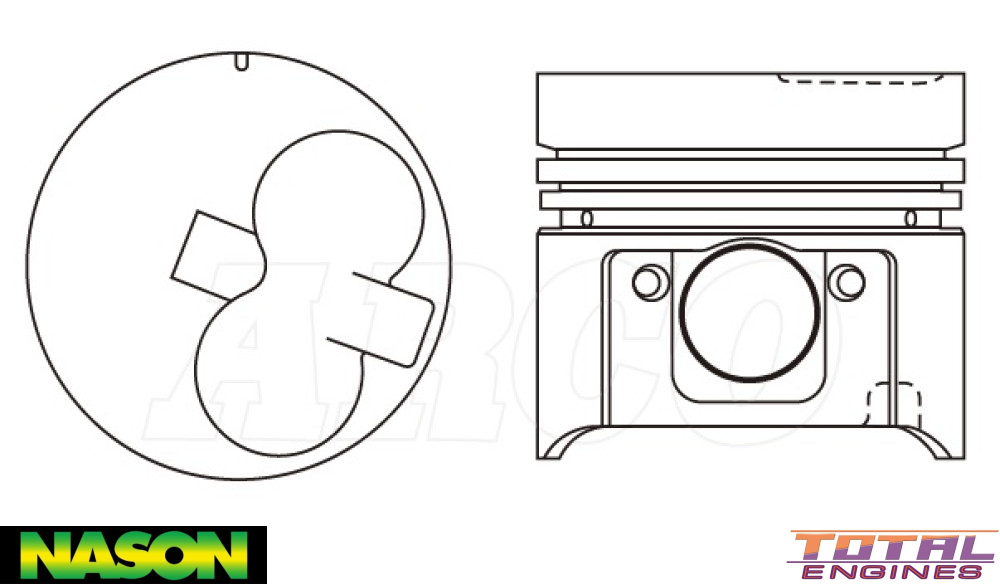

Nason Piston & pin set - 4DP2025-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	86.00mm
Size:	Std
Head Type:	Clover leat With 2 Valve Relief
Piston Type:	Cast
Length:	77.00mm
Comp Height:	47.00mm, -2.30mm
Pin Size:	27.00mm x 68.00mm
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	35940-STD

Description

Suits Early Engines With 47.0mm Comp Height

Combustion Bowl OD

Pin Type

Alfin Insert, Anodized Head
