Nason Piston & pin set - 4DP2029-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	89.00mm
Size:	STD

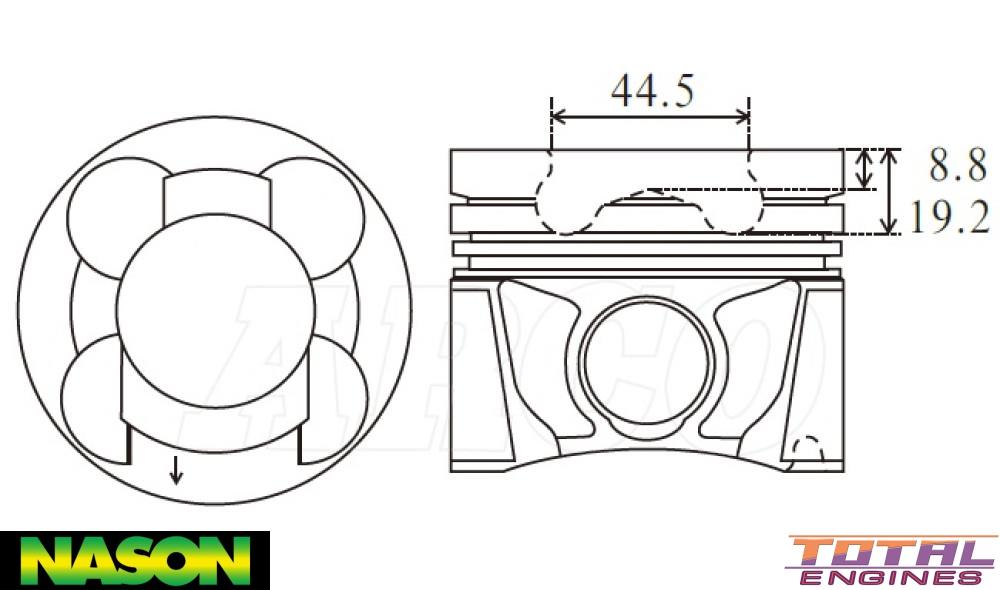

Head Type:	Combustion Bowl With 4 Valve Reliefs
Piston Type:	Cast
Length:	73.80mm
Comp Height:	48.90mm, -8.80mm -19.20mm
Combustion Bowl OD:	44.50mm
Pin Size:	28.00mm x 71.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	34134-STD

Description

Suits R51M & D40M 01/2005 to 09/2006

Alfin Inserts, Oil Gallery Cooling

Replaces PKNYD25-A-STD
