Nason Piston & pin set - 4DP2031-1.00

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	89.00mm
Size:	1.00mm / .040"
Head Type:	Combustion Bowl With 4 Valve Reliefs
Piston Type:	Cast
Length:	80.00mm

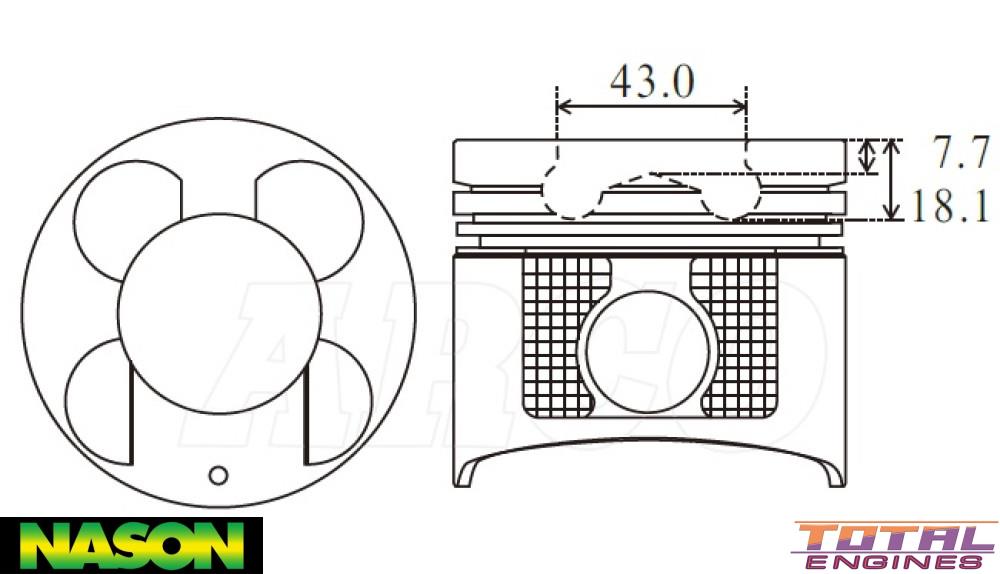

Comp Height:	48.80mm, -7.70mm -18.10mm
Combustion Bowl OD:	43.00mm
Pin Size:	28.00mm x 61.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	34134-1.00

Description

Suits D22 Non Common Rail Only

Alfin Inserts, Oil Gallery Cooling

Replaces PKNYD25E-A-1.00
