Nason >> Nason Piston & pin set - 4DP2033-0.50

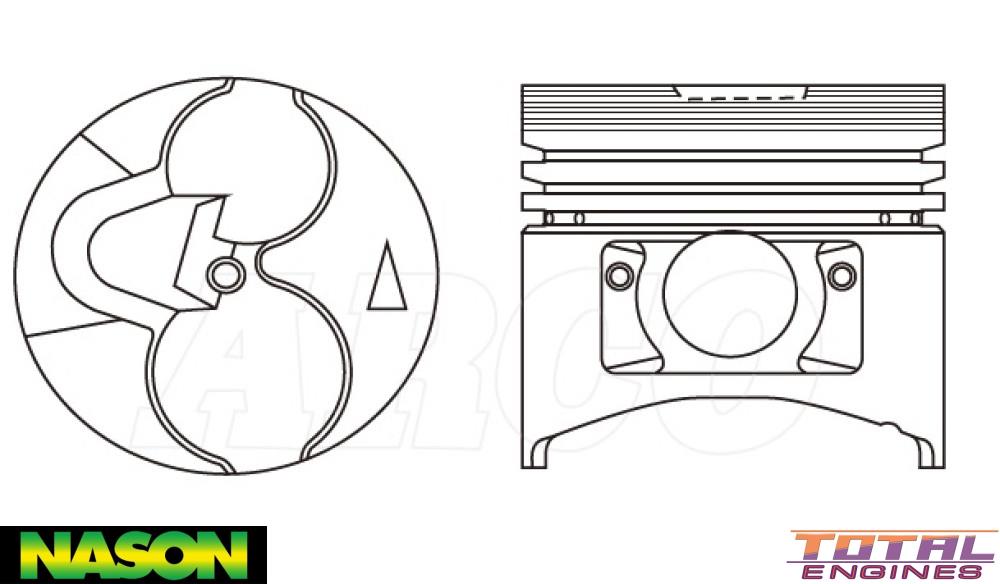

Nason Piston & pin set - 4DP2033-0.50

Part
Nason logo

Nason Piston & pin set - 4DP2033-0.50

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: 0.50mm / .020"
Head Type: Flat Top With 2 Valve Reliefs
Piston Type: Cast
Length: 88.70mm
Comp Height: 48.70mm, -2.30mm -2.60mm
Pin Size: 29.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 4.00mm
Ring Set: 33862-0.50

Description

Suits Engines With Out Oil Gallery Cooling

Combustion Bowl OD

Alfin

Replaces PKM4D55T-A-STD
