Nason >> Nason Piston & pin set - 4DP2035-STD

Nason Piston & pin set - 4DP2035-STD

Part
Nason logo

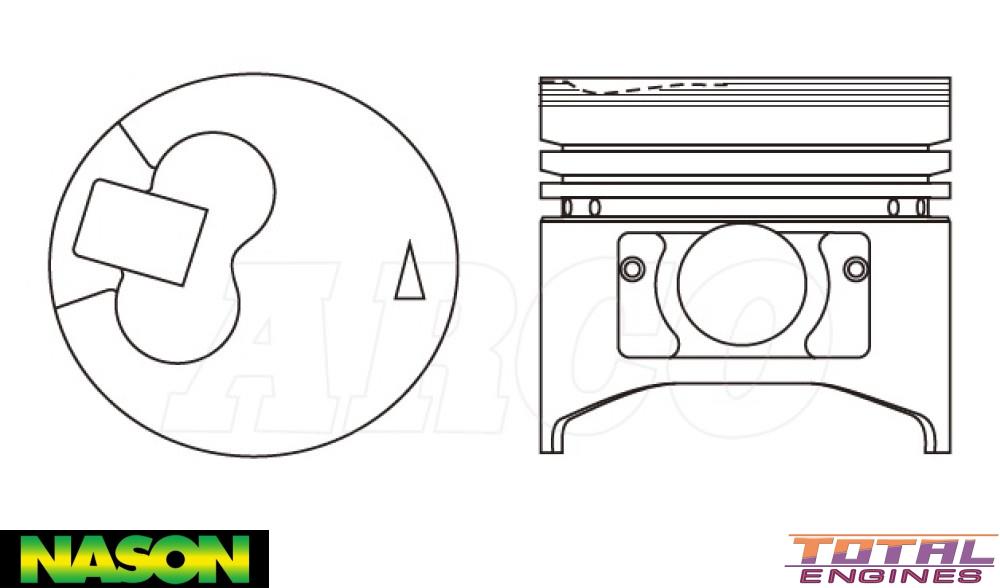

Nason Piston & pin set - 4DP2035-STD

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: STD
Head Type: Flat Top With Clover Leaf
Piston Type: Cast
Length: 88.70mm
Comp Height: 48.70mm, -1.30mm -2.60mm
Pin Size: 29.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 4.00mm
Ring Set: 33862-STD

Description

Suits Turbo Intercooled Engines

Combustion Bowl OD

Alfin

Replaces PKM4D56TI-A-STD
