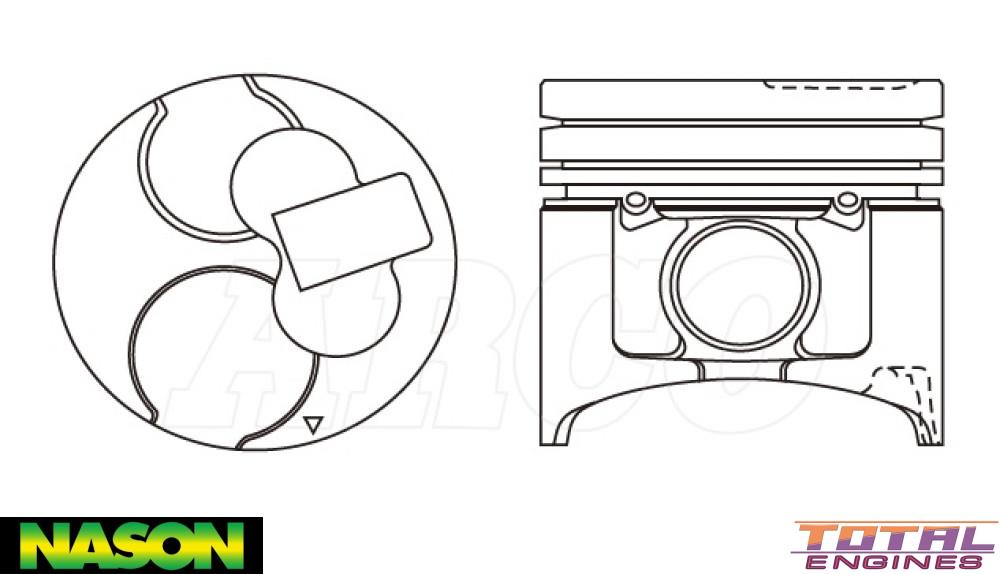

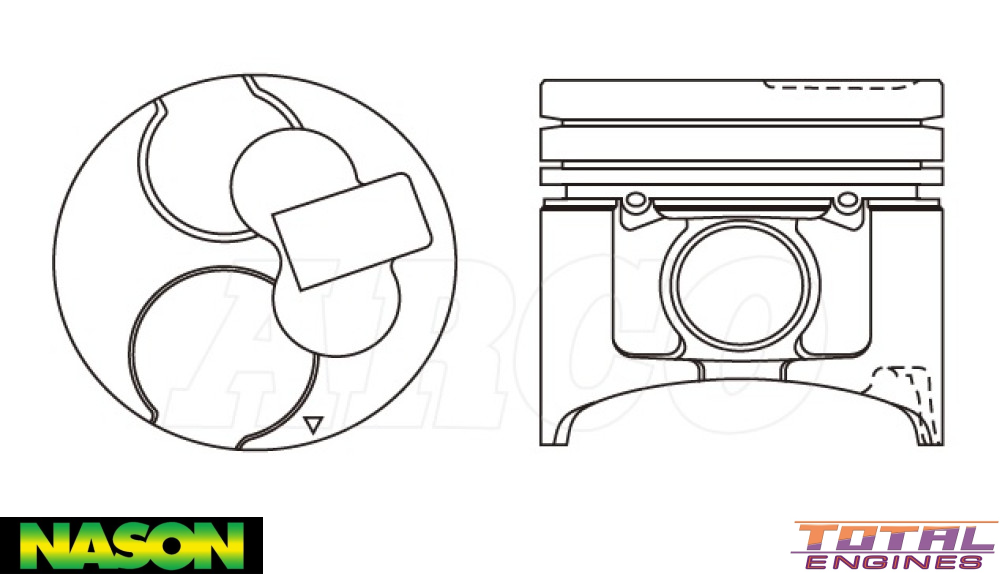

Nason Piston & pin set - 4DP2039-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	95.00mm
Size:	0.50mm / .020"
Head Type:	Flat Top With Clover Leaf and 2 Valve Reliefs
Piston Type:	Cast
Length:	91.60mm
Comp Height:	51.60mm, -3.00mm
Pin Size:	30.00mm x 77.90mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.30mm Double Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	33952-0.50

Description

Combustion Bowl OD

Alfin, With Oil Gallery Cooling & Anodized Head

Replaces PKM4M40T-A-0.50
