Nason Piston & pin set - 4DP2041-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	98.50mm
Size:	0.50mm / .020"
Head Type:	Combustion Bowl & 4 Valve Reliefs
Piston Type:	Cast
Length:	87.00mm
Comp Height:	47.00mm, -7.40mm, -20.50mm

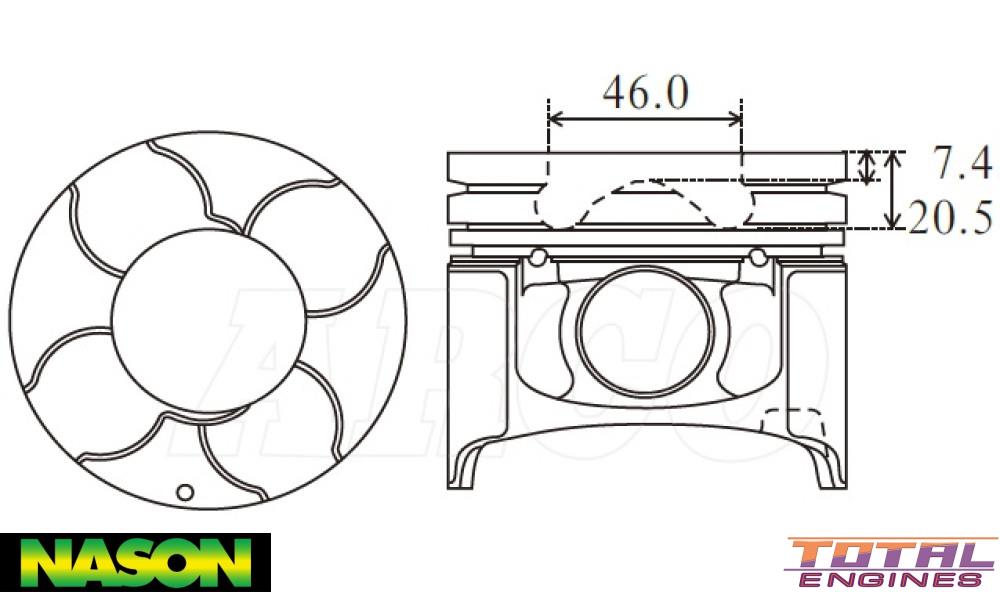

Combustion Bowl OD:	46.00mm
Pin Size:	32.00mm x 80.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.30mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	33956-0.50

Description

With 46mm Combustion Bowl, 47mm Comp Height

Alfin, With Oil Gallery Cooling & Anodized Head

Replaces PKM4M41TL-0.50
