Nason Piston & pin set - 4DP2042-1.00

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	98.50mm
Size:	1.00mm / .040"

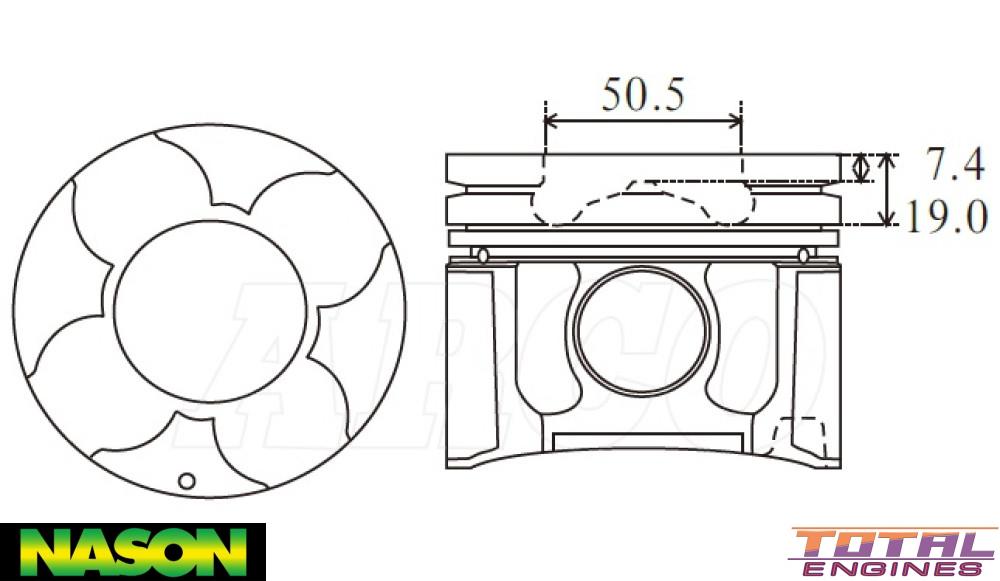

Head Type:	Combustion Bowl & 4 Valve Reliefs
Piston Type:	Cast
Length:	77.00mm
Comp Height:	49.00mm, -7.40mm, -19.00mm
Combustion Bowl OD:	50.50mm
Pin Size:	32.00mm x 80.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.30mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	33956-1.00

Description

With 50.5mm Combustion Bowl, 49mm Comp Height

Alfin, With Oil Gallery Cooling

Replaces PKM4M41TLL-1.00
