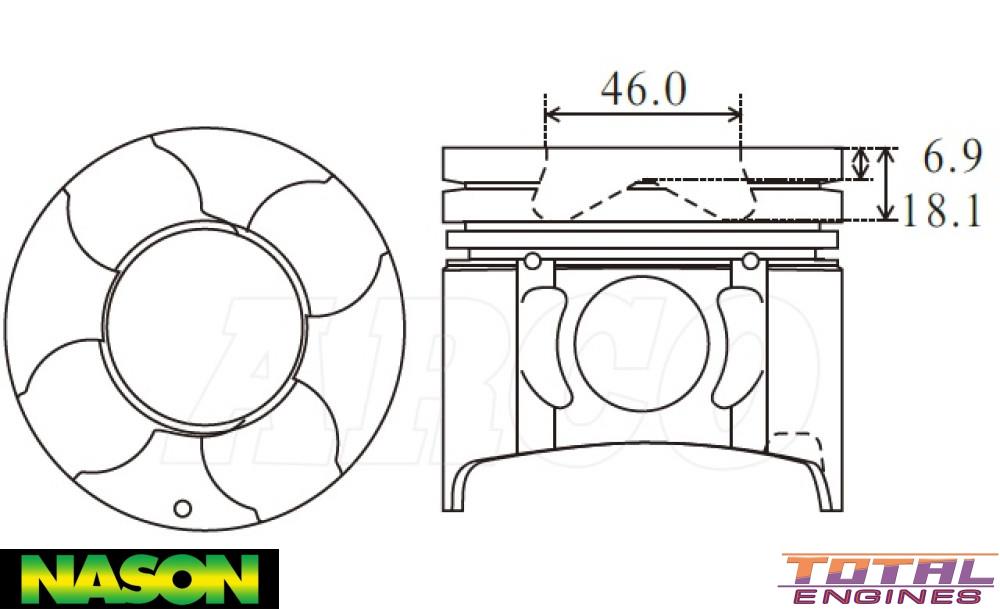

Nason Piston & pin set - 4DP2043-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	95.00mm
Size:	STD
Head Type:	Combustion Bowl & 4 Valve Reliefs
Piston Type:	Cast
Length:	87.00mm
Comp Height:	47.00mm, -6.90mm, -18.10mm
Combustion Bowl OD:	46.00mm
Pin Size:	32.00mm x 80.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.30mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	33952-STD

Description

Suits 4M42-0AT

Alfin, With Oil Gallery Cooling

Replaces PKM4M42T-STD
