Nason >> Nason Piston & pin set - 4DP2044-STD

Nason Piston & pin set - 4DP2044-STD

Part
Nason logo

Nason Piston & pin set - 4DP2044-STD

$556.63

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 86.00mm
Size: STD
Head Type: Combustion Bowl
Piston Type: Cast
Length: 74.80mm

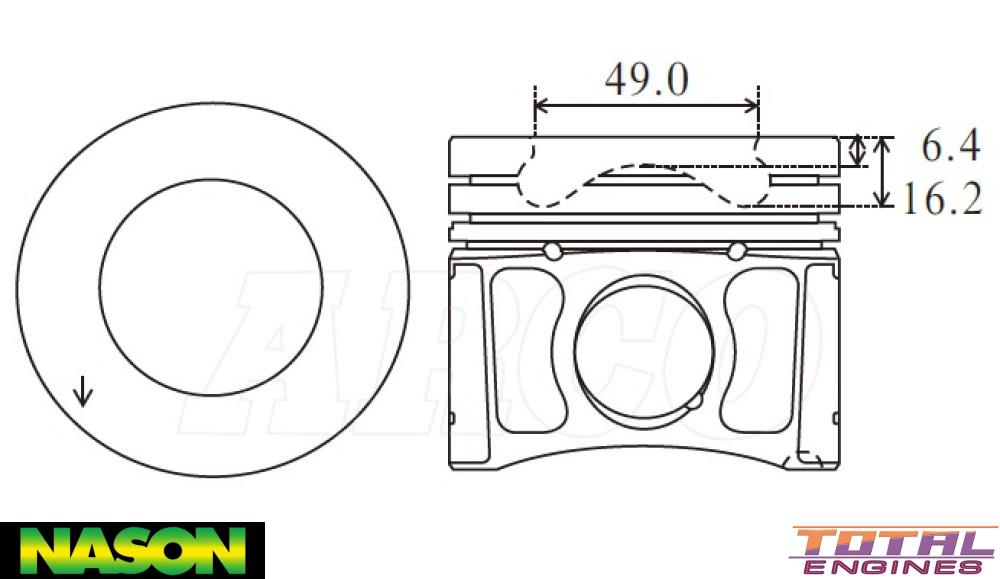

Comp Height: 48.40mm, -6.40mm, -16.20mm
Combustion Bowl OD: 49.00mm
Pin Size: 30.00mm x 67.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 50068-STD X 1

Description

Suits Ranger, BT50 & Transit With 48.40 Comp Height

Alfin, With Oil Gallery Cooling

Replaces PKFP4AT-STD
