Nason >> Nason Piston & pin set - 4DP2045-STD

Nason Piston & pin set - 4DP2045-STD

Part
Nason logo

Nason Piston & pin set - 4DP2045-STD

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 86.00mm
Size: STD
Head Type: Combustion Bowl
Piston Type: Cast
Length: 69.80mm

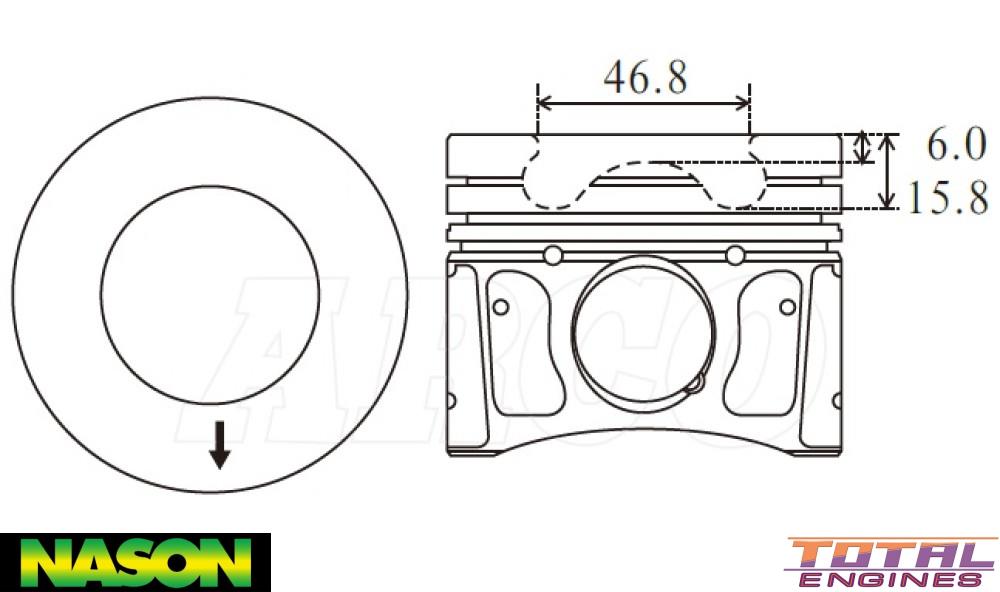

Comp Height: 43.40mm, -6.00mm, -15.80mm
Combustion Bowl OD: 46.80mm
Pin Size: 30.00mm x 66.80mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 2D7451-STD X 4 OR 50068-STD X 1

Description

Suits Transit With 43.40 Comp Height

Alfin, With Oil Gallery Cooling

Replaces PKFP4ATE-STD
