Nason Piston & pin set - 4DP2047-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	89.90mm
Size:	0.50mm / .020"

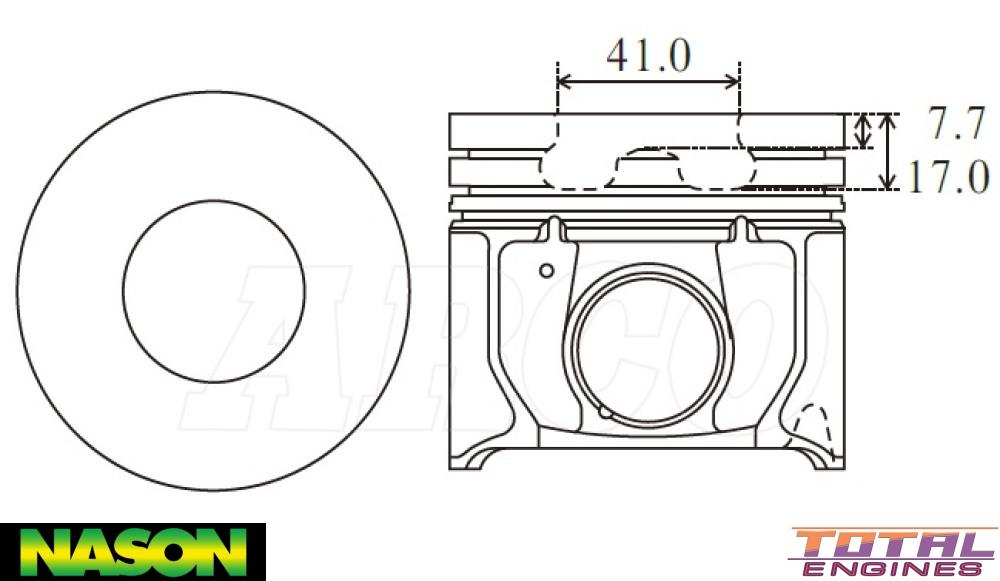

Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	80.40mm
Comp Height:	53.50mm, -7.70mm, -17.00mm
Combustion Bowl OD:	41.00mm
Pin Size:	32.00mm x 66.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.00mm
Oil Ring Width:	2.00mm
Ring Set:	50049-0.50mm X 4

Description

Suits Transit VH Models With 66kw (D2FA)

Alfin

Replaces 4MKRY8089-0.50
