Nason Piston & pin set - 4DP2048-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	89.90mm
Size:	STD
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	80.50mm

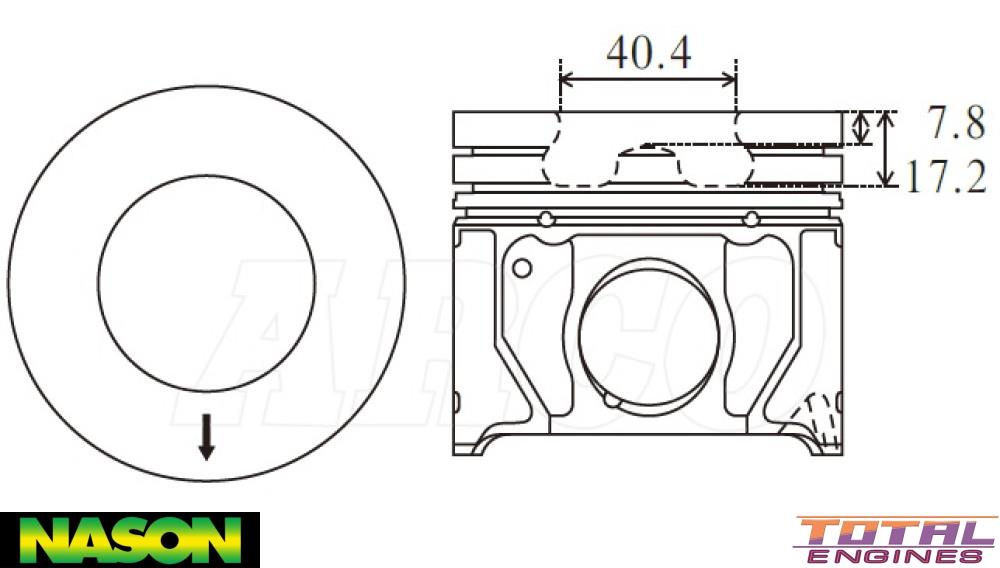

Comp Height:	53.50mm, -7.80mm, -17.20mm
Combustion Bowl OD:	40.40mm
Pin Size:	32.00mm x 71.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.00mm
Oil Ring Width:	2.00mm
Ring Set:	50049-STD X 4

Description

Suits Transit VH & VJ With 85kw To 92kw (FXFA, D0FA)

Alfin With Oil Gallery Cooling

Replaces 4MKRY8091-STD
