Nason Piston & pin set - 4DP2049-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	89.90mm
Size:	0.50mm / .020"

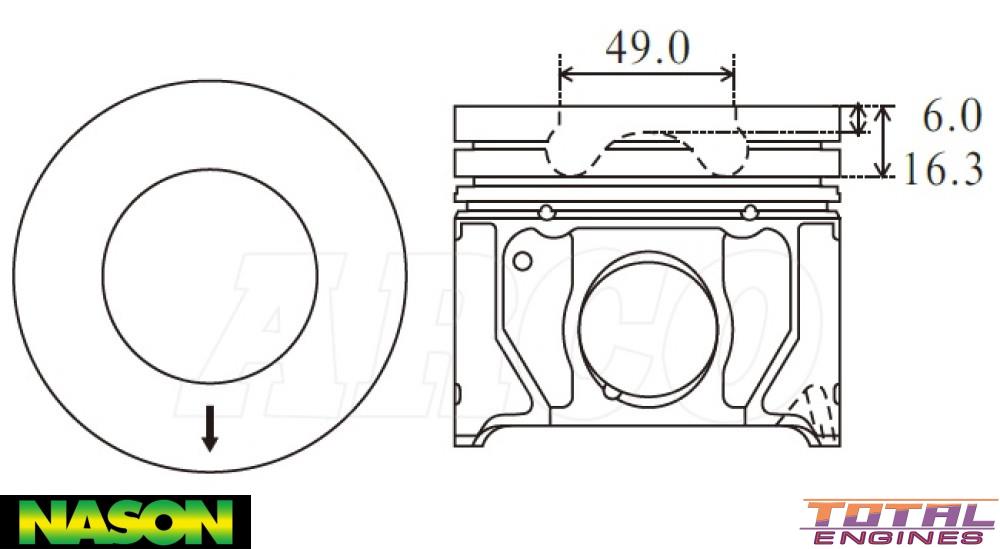

Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	80.40mm
Comp Height:	53.50mm, -6.00mm, -16.30mm
Combustion Bowl OD:	49.00mm
Pin Size:	32.00mm x 71.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.00mm
Oil Ring Width:	2.00mm
Ring Set:	50049-0.50 X 4

Description

Suits Transit VJ & VM With 101kw Or 103kw (H9FA, H9FB)

Alfin With Oil Gallery Cooling

Replaces 4MKRY8092-0.50
