Nason >> Nason Piston & pin set - 4DP2050-0.50

Nason Piston & pin set - 4DP2050-0.50

Part
Nason logo

Nason Piston & pin set - 4DP2050-0.50

$675.68

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 0.50mm / .020"
Head Type: Combustion Bowl
Piston Type: Cast
Length: 74.10mm

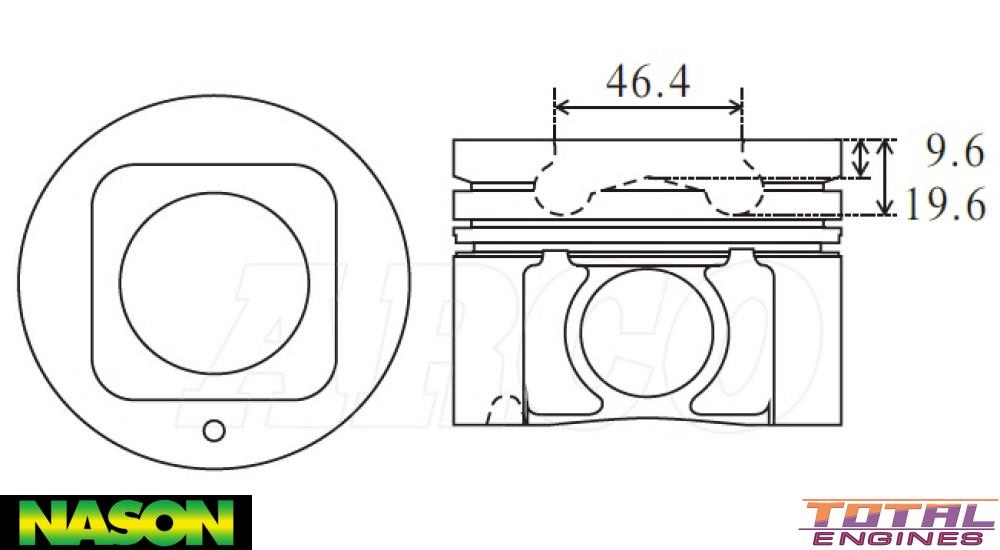

Comp Height: 50.10mm, -9.60mm, -19.60mm
Combustion Bowl OD: 46.40mm
Pin Size: 33.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 34166-0.50

Description

Alfin, With Oil Gallery Cooling & Anodized Head

Replaces PKNZD30-A-0.50
