Nason >> Nason Piston & pin set - 4DP2051-STD

Nason Piston & pin set - 4DP2051-STD

Part
Nason logo

Nason Piston & pin set - 4DP2051-STD

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: STD
Head Type: Combustion Bowl
Piston Type: Cast
Length: 78.10mm

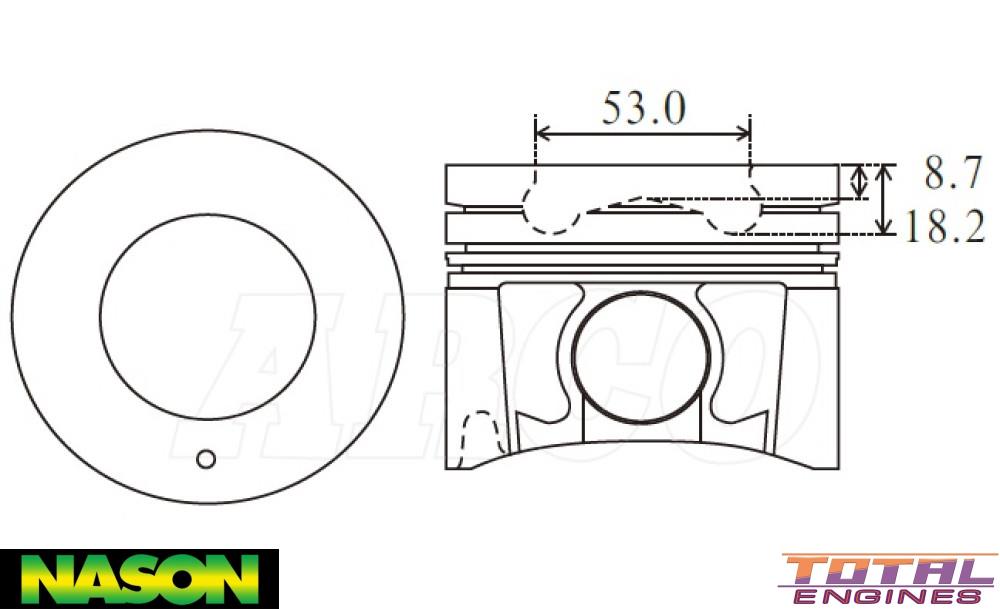

Comp Height: 50.10mm, -8.70mm, -18.20mm
Combustion Bowl OD: 53.00mm
Pin Size: 33.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 34166-STD

Description

Suits Common Rail

Alfin, With Oil Gallery Cooling

Replaces PKNZD30DDTI-STD
