Nason >> Nason Piston & pin set - 4DP2052-STD

Nason Piston & pin set - 4DP2052-STD

Part
Nason logo

Nason Piston & pin set - 4DP2052-STD

$720.72

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: STD
Head Type: Combustion Bowl
Piston Type: Cast
Length: 86.20mm

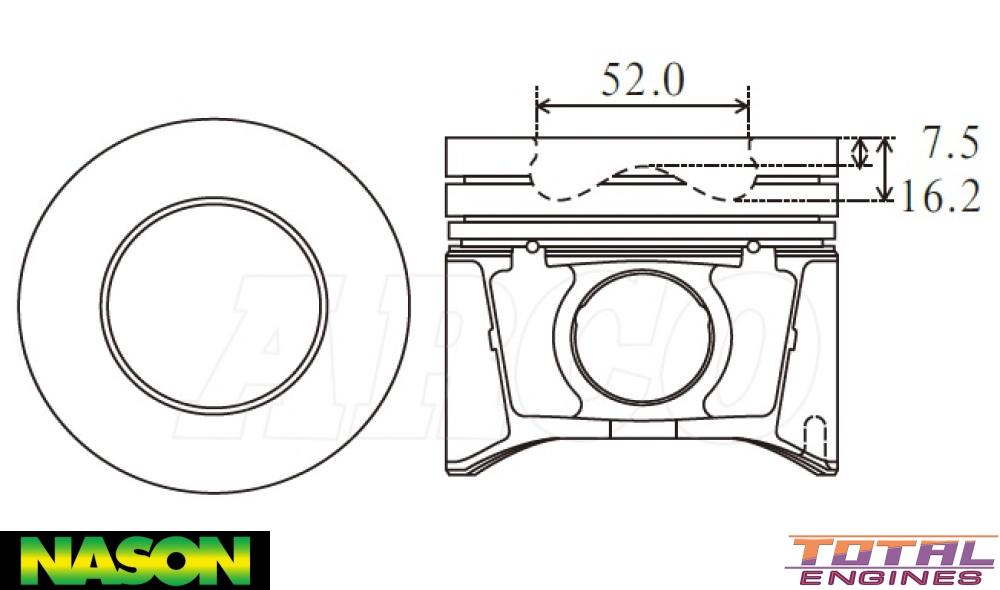

Comp Height: 51.70mm, -7.50mm, -16.20mm
Combustion Bowl OD: 52.00mm
Pin Size: 34.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.00mm
Ring Set: 33802-STD

Description

Alfin, With Oil Gallery Cooling
